SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Freezer Door


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Motor And Ice Container


09 - Dispenser Front


10 - Icemaker

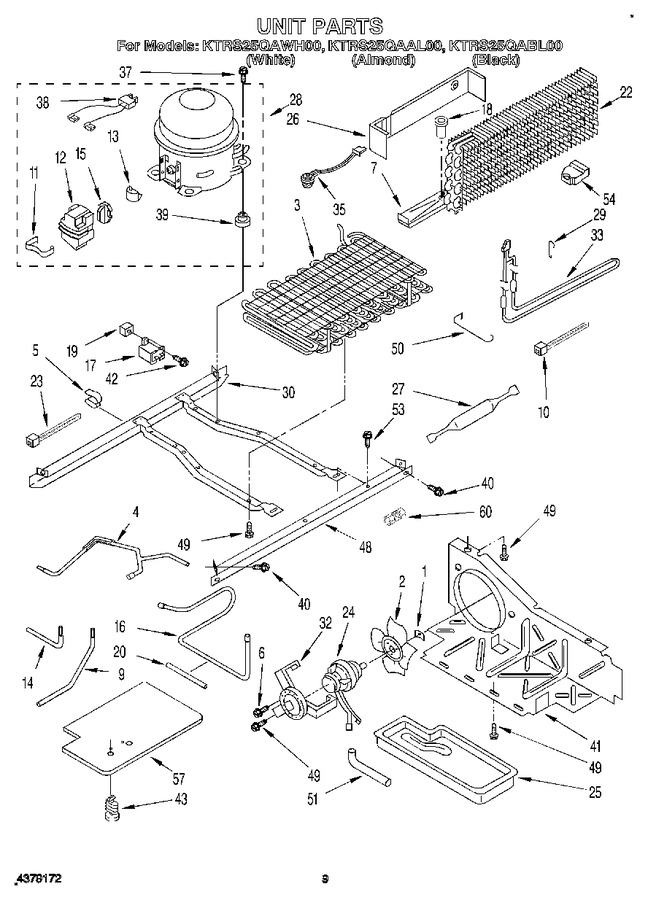

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2154011		Condenser Assembly		Appelez-nous	-
4	2162475		Tube, Discharge		Appelez-nous	-
5	2155658		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	1114597		Drain Pan		Appelez-nous	-
9	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	4388953		Overload (service (includes Relay))   (Replaces: 2154761)				$ 174.31
13	4388953		Overload (production (includes Relay))   (Replaces: 2154142)				$ 174.31
14	2154109		Tube, Process				$ 76.26
15	N/A		Relay (see Overload)		Appelez-nous	-
16	2162473		Tube, Suction		Appelez-nous	-
17	2154565		Running Capacitor		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 21.32
22	2153980		Evaporator		Appelez-nous	-
23	WPW10339879		Strap   (Replaces: 2165001)				$ 8.30
24	833697		Fan, Motor   (Replaces: 2154798)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
26	1116511		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	876765		Tube Kit			Immediately	$ 90.65
28	2154558		Compressor (includes Items 11, 12, 13, 15, 17, 38 & 39) (also Order)		Appelez-nous	-
29	2149120		Support, Heater		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162021		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 47.89
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	2162457		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	489396		Clip				$ 11.26
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 84.67
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
50	1110663		Guard, Fan		Appelez-nous	-
51	2154119		Tube, Drain		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
54	1118017		Support, Evap.		Appelez-nous	-
57	2157369		Cover, Unit Bottom		Appelez-nous	-
60	876764		Valve, Access(3/16``)			Immediately	$ 95.92
60	WP4211117		Connector, Union   (Replaces: 2150347)				$ 10.46
60	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
60	978029		Valve Access (5/8``)				$ 93.85
60	978030		Valve, Access (3/4``)				$ 137.25
60	978026		Valve, Access (5/16``)			Immediately	$ 134.49
60	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
60	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
