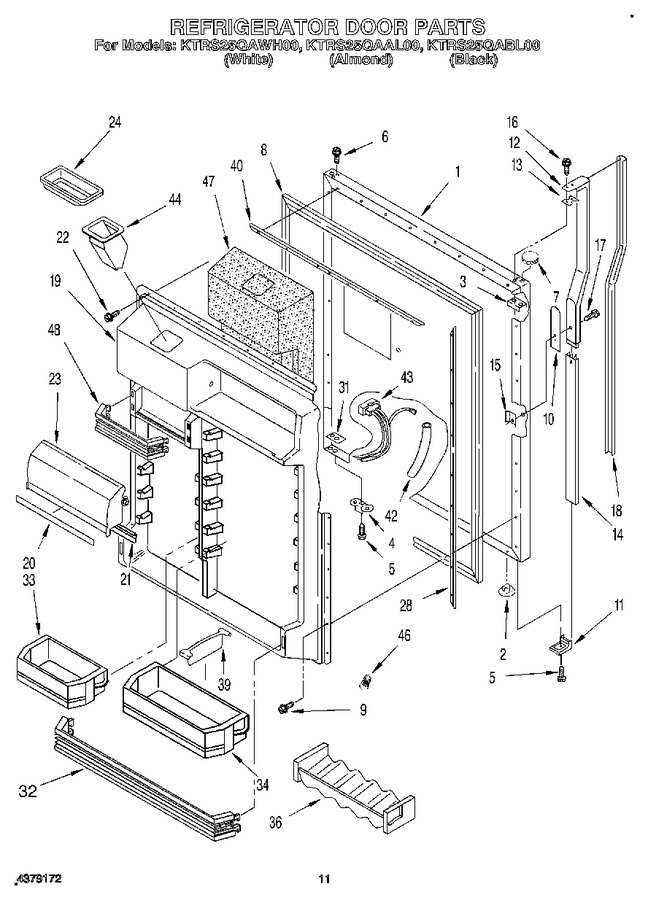

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2168608 | Panel, Refrigerator Door (includes Insulation) (white) |
|
- | |||||
| 1 | 2168609 | Panel, Refrigerator Door (includes Insulation) (black) |
|
- | |||||
| 1 | 2160678 | Panel, Refrigerator Door (includes Insulation) (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 988420 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2160808) |
|
$ 24.21 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 1125923 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 10 | 1107650 | Spacer Door |
|
- | |||||
| 11 | 1107236 | End Cap Bottom |
|
- | |||||
| 12 | 2161508 | Handle, Center |
|
$ 111.30 | |||||
| 13 | 2151813 | Shim, Handle |
|
- | |||||
| 14 | 1107209 | Retainer, Insert |
|
- | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 2151669) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 2161513 | Insert, Handle (white) |
|
- | |||||
| 18 | 2161851 | Insert, Handle (black) |
|
- | |||||
| 18 | 2161514 | Insert, Handle (almond) |
|
- | |||||
| 19 | 2160665 | Interior Door Panel |
|
- | |||||
| 20 | 1118063 | Trim, Door Compartment |
|
- | |||||
| 21 | 1125695 | Gasket, Utility Door |
|
- | |||||
| 22 | WP488729 | Screw, Corner (8) (Replaces: 489287) |
|
Immediately | $ 8.28 | ||||
| 23 | 1125733 | Compartment Door, |
|
- | |||||
| 24 | 1125936 | Butter, Tray |
|
- | |||||
| 28 | 1123245 | Retainer, Gasket |
|
- | |||||
| 31 | 2160674 | Tap Plate |
|
- | |||||
| 32 | 1125743 | Shelf, Bin |
|
- | |||||
| 33 | 1125744 | Door Bin (narrow) |
|
- | |||||
| 34 | 1125555 | Door Bin (wide) |
|
- | |||||
| 36 | 1125981 | Holder, Beverage |
|
- | |||||
| 39 | 1117999 | Load Lock |
|
- | |||||
| 40 | 1121119 | Retainer, Gasket |
|
- | |||||
| 42 | 2160673 | Tube-door Wiring |
|
- | |||||
| 43 | 2160685 | Plug, Crossover |
|
- | |||||
| 44 | 2160684 | Ice Chute |
|
- | |||||
| 46 | 2160674 | Connector-wire |
|
- | |||||
| 47 | 2160683 | Insulation, Dispenser |
|
- | |||||
| 48 | 2160776 | Trim-door Shelf |
|
- |
