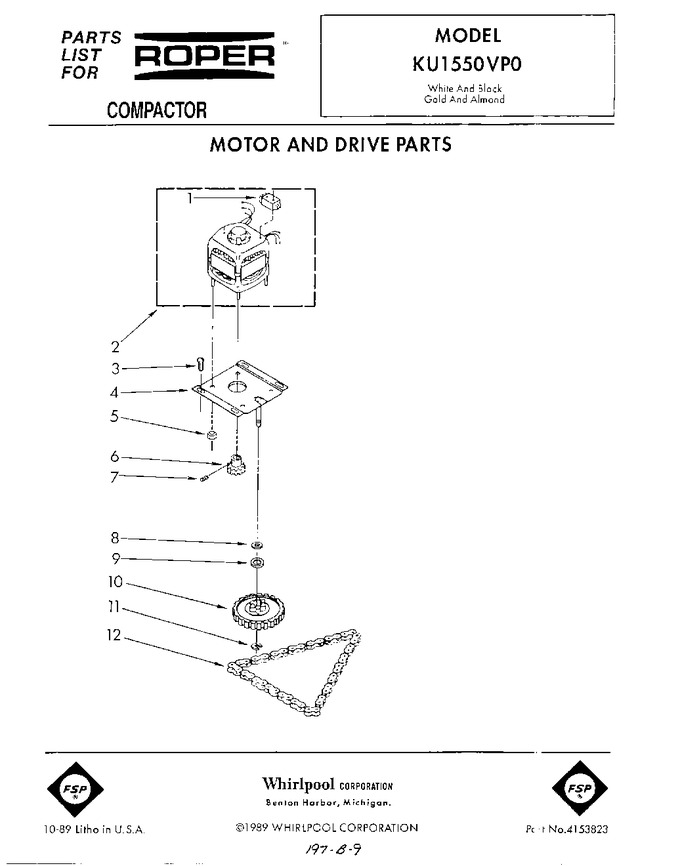

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439651		Switch, Motor   (Replaces: 777710)				$ 326.85
2	W10439651		Motor, Drive (includes No.1)   (Replaces: 780360)				$ 326.85
3	776593		Screw. 1/4-20 X 1/2 (4)		Appelez-nous	-
4	776327		Plate, Drive Motor		Appelez-nous	-
5	WP776338		Locknut, 10-32 (4)   (Replaces: 776338)				$ 19.35
6	882699		Gear, Drive   (Replaces: 4149667)				$ 117.67
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.54
8	776035		Washer, Wave				$ 13.38
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 13.56
10	882699		Gear, Driven   (Replaces: 777124)				$ 117.67
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.43
12	4152077		Harness, Wiring		Appelez-nous	-
12	780477		Chain, Drive				$ 206.73
	LIT780487		Sheet, Tech And Wiring Daigram		Appelez-nous	-
	LIT4153823		List, Repair Parts		Appelez-nous	-
	LIT4153819		Instructions, Installation		Appelez-nous	-
	LIT4153812		Guide, Use And Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
