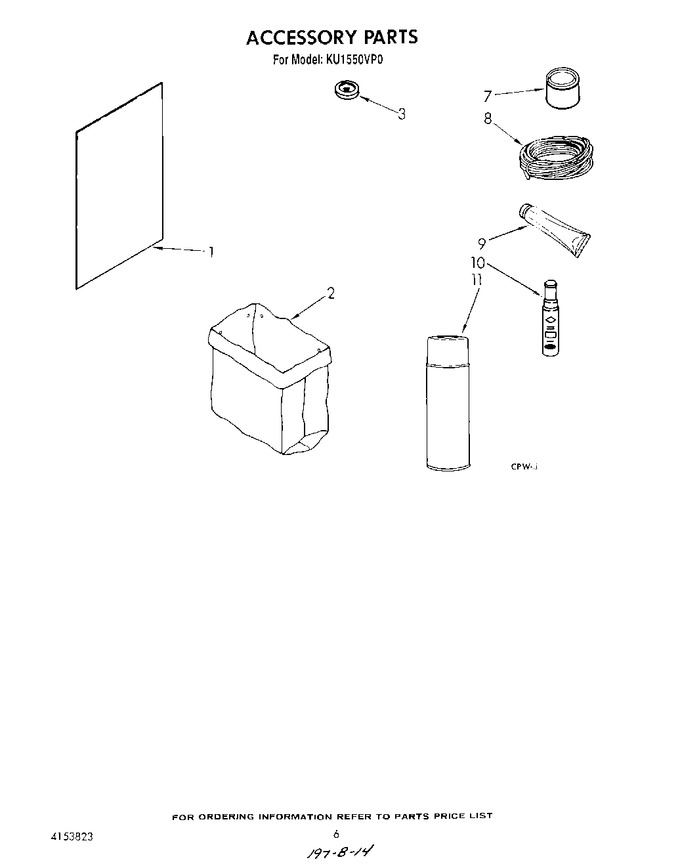

06 - Accessory
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 777714 | Panel, Container Front (coffee & Harvest Gold) |
|
- | |||||
| 1 | 777941 | Panel, Container (harvest Gold) (black & White) |
|
$ 36.40 | |||||
| 1 | 777912 | Panel, Container (harvest Gold) (coffee & Avocado) |
|
- | |||||
| 1 | 780280 | Panel, Container (harvest Gold) (platinum & Toast) |
|
- | |||||
| 1 | 780334 | Panel, Container Front (almond & Black) |
|
- | |||||
| 1 | 777762 | Panel, Container Front (almond & Harvest Gold) |
|
- | |||||
| 2 | 4153822 | Bag, Trash |
|
- | |||||
| 3 | 777635 | Deodorizer, Solid Stick-ups (2-pack) |
|
- | |||||
| 7 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 7 | 675351 | Grease 4 Oz. (use On Power Screw & Ram Pressure Pads) |
|
- | |||||
| 7 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 7 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 7 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 7 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 7 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 7 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 9 | 978726 | Spray 13 Oz. (stanford Brown) |
|
- | |||||
| 9 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 9 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 9 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 110.91 | ||||
| 9 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | |||||
| 9 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 9 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 9 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 9 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 9 | DD81-03505A | Paint, Touch-up 1/2 Oz. (stanford Brown) (Replaces: 72106) |
|
$ 121.47 | |||||
| 9 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 9 | 261888 | Spray 13 Oz. (avocado) |
|
- | |||||
| 9 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 57.04 | |||||
| 9 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 9 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 9 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 9 | 261886 | Spray 13 Oz. (coffee) |
|
- | |||||
| 9 | 261890 | Spray 13 Oz. (harvest Gold) |
|
- | |||||
| 9 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 9 | 675167 | Spray 13 Oz. (electro Tan) |
|
- |
