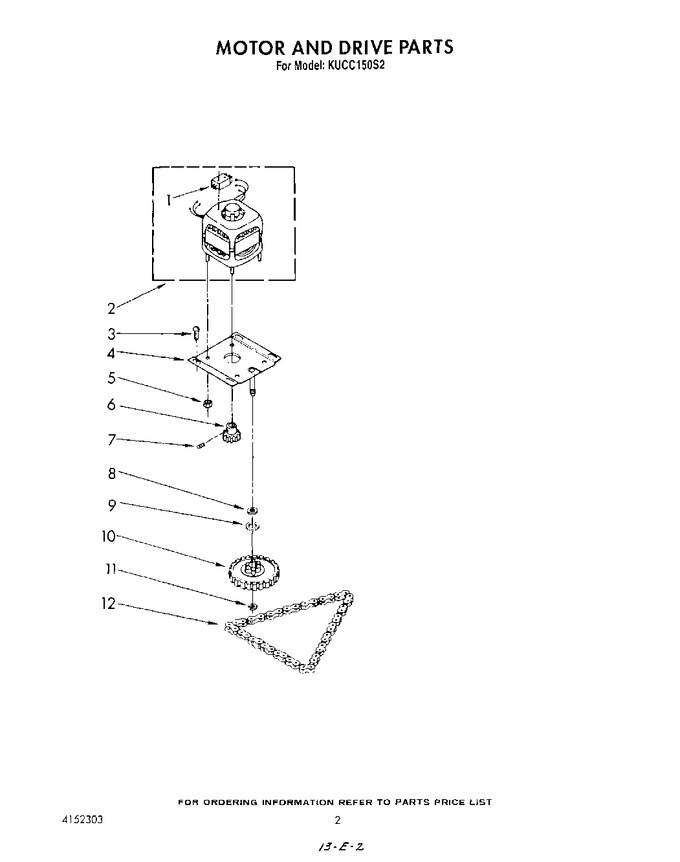

02 - Motor And Drive , Lit/optional


03 - Frame


04 - Power Screw And Ram


05 - Container


06 - Panel And Control


07 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4147711		Switch, Motor		Appelez-nous	-
2	4147710		Motor, Drive (includes No. 1)		Appelez-nous	-
3	776593		Screw. 1/4-20 X 1/2 (4)		Appelez-nous	-
4	776327		Plate, Drive Mount		Appelez-nous	-
5	WP776338		Locknut, 10-32 (4)   (Replaces: 776338)				$ 20.32
6	882699		Gear, Drive   (Replaces: 4149667)				$ 123.55
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.92
8	776035		Washer, Wave				$ 14.05
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 14.24
10	882699		Gear, Driven   (Replaces: 777124)				$ 123.55
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.80
12	4152080		Harness, Wiring (complete)		Appelez-nous	-
12	780477		Chain, Drive				$ 217.07
	LIT4147738		Sheet, Tech And Wiring Daigram		Appelez-nous	-
	LIT4152303		List, Repair Parts		Appelez-nous	-
	LIT4147742		Instructions, Installation (unit To Window)		Appelez-nous	-
	LIT4147739		Manual, Owners		Appelez-nous	-
