SELECT A DIAGRAM

02 - Motor And Drive , Lit/optional


03 - Frame


04 - Power Screw And Ram


05 - Container


06 - Panel And Control


07 - Accessory

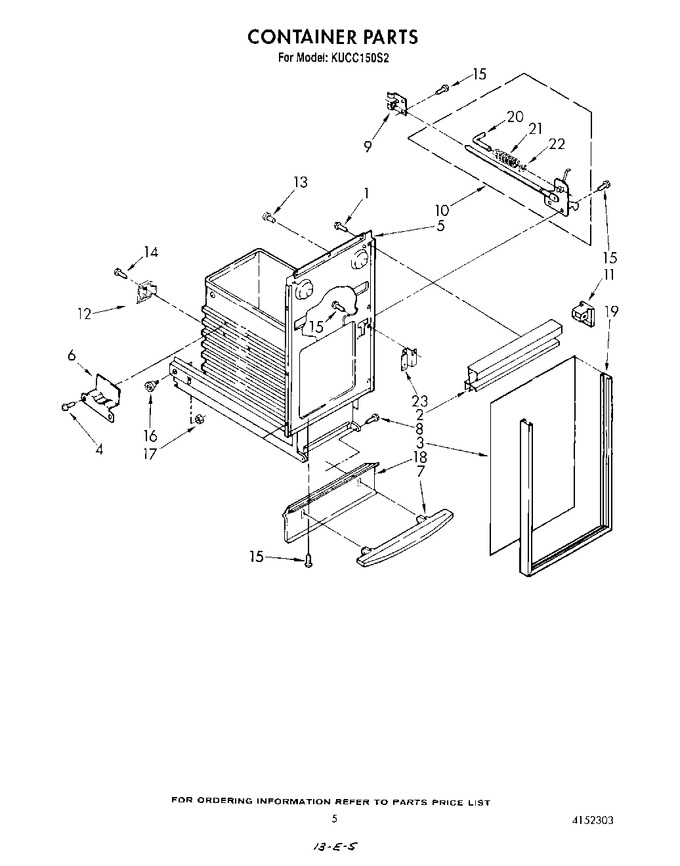

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
2	4149710		Handle, Container		Appelez-nous	-
3	777762		Panel, Container Front (almond & Harvest Gold)		Appelez-nous	-
3	777941		Panel, Container (white & Black)				$ 36.40
3	780280		Panel, Container (toast & Platinum)		Appelez-nous	-
4	WP489069		Screw, 8-18 X 1/2   (Replaces: 777465)			Immediately	$ 8.40
5	675296		Container Assembly		Appelez-nous	-
6	776523		Plate, Trim				$ 21.17
7	882657		Pedal, Foot   (Replaces: 777172)				$ 156.63
8	WP780263		Screw, Shoulder No.8-32 X 3/8 (2)   (Replaces: 780263)				$ 8.34
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 775740)				$ 182.53
11	780189		End Cap, Handle (r.h.)		Appelez-nous	-
11	780188		End Cap, Handle (l.h.)		Appelez-nous	-
12	9871125		Actuator, Safety Switch   (Replaces: 4149378)				$ 29.37
13	775785		Bumper, Container (2)		Appelez-nous	-
14	4149395		Screw (2)		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
16	WP9871602		Container, Bearing Roller   (Replaces: 776261)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	WPW10242557		Plate, Toe Guard   (Replaces: 4150358)				$ 142.53
19	777345		Trim, Container (front)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 93.80
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 62.39

    View Diagram in Separate Window       Print Part List
