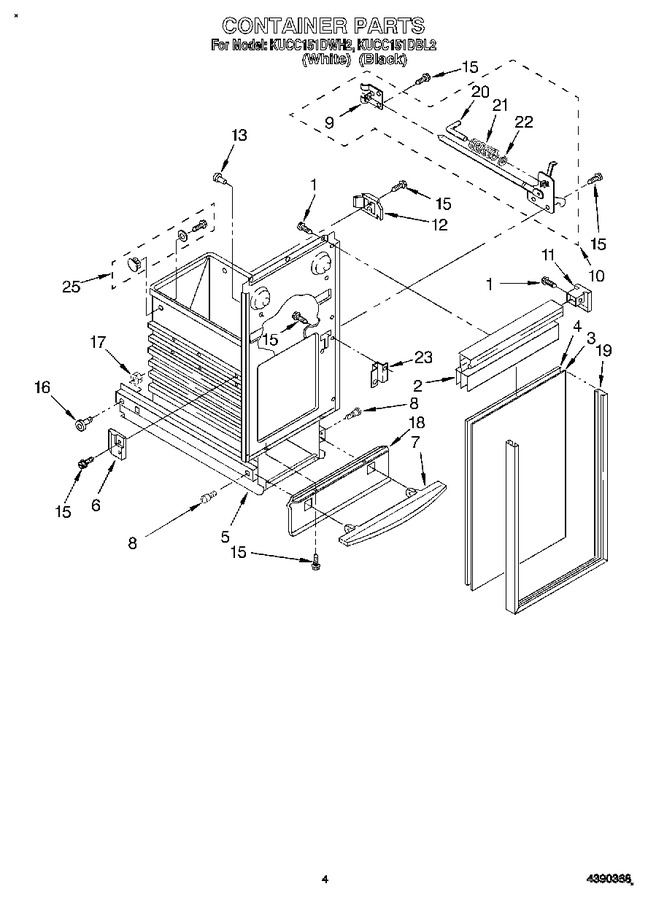

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139210		Screw, Hex Head   (Replaces: 4152204)				$ 7.50
2	9871083		Handle, Container (white)		Appelez-nous	-
2	9871082		Handle, Container (black)		Appelez-nous	-
3	9870989		Panel, Container (black And Almond)		Appelez-nous	-
3	4151463		Panel, Container (white & Black)		Appelez-nous	-
4	4151465		Panel, Spacer		Appelez-nous	-
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 486.21
6	9870774		Guide, Container (2)		Appelez-nous	-
7	W11679165		Pedal, Foot (black)   (Replaces: 4149672)				$ 59.49
7	WP9871031		Pedal, Foot (white)   (Replaces: 9871031)				$ 151.94
8	WP780263		Screw, Shoulder No.8-32 X 3/8 (2)   (Replaces: 780263)				$ 7.85
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 93.43
10	675379		Latch Assembly   (Replaces: 9870066)				$ 173.84
11	9871171		End Cap, Handle Left Hand (white)		Appelez-nous	-
11	9871170		End Cap, Handle (white, Lh)		Appelez-nous	-
11	9871172		End Cap, Handle Left Hand (black Right Hand)		Appelez-nous	-
11	9871173		End Cap, Handle Left Hand (black)		Appelez-nous	-
12	9871125		Actuator, Saftey Switch				$ 27.97
13	775785		Bumper, Container (2)		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2   (Replaces: 776076)			Immediately	$ 7.86
16	WP9871602		Container, Bearing Roller   (Replaces: 776261)				$ 13.21
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 7.85
18	WPW10242557		Plate, Toe Guard (black)   (Replaces: 777328)				$ 135.74
18	W10917704		Plate, Toe Guard (white)   (Replaces: 9871030)		Appelez-nous	-
19	9871088		Trim, Container (front) (white)		Appelez-nous	-
19	9871107		Trim, Container (front) (black)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 89.33
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 59.42
25	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
