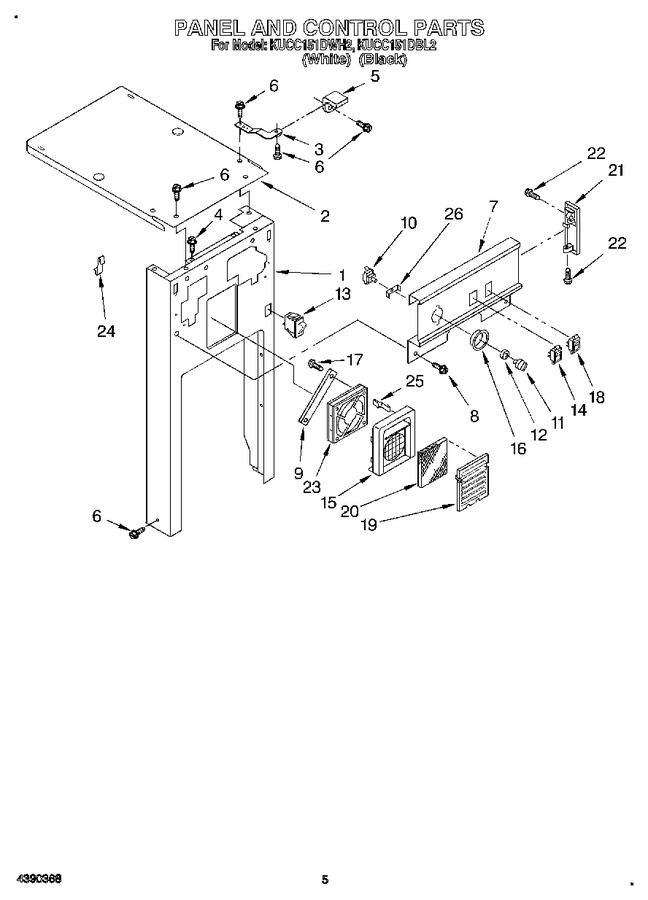

05 - Panel And Control
06 - Accessory
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9871073 | Panel, Front Frame |
|
- | |||||
| 2 | W11684543 | Cover, Top (Replaces: 608572) |
|
- | |||||
| 3 | W11729437 | Bracket, Retainer (r.h.) (Replaces: 9870157) |
|
Immediately | $ 23.31 | ||||
| 3 | W11729437 | Bracket, Retainer (l.h.) (Replaces: 9870158) |
|
Immediately | $ 23.31 | ||||
| 4 | 4153701 | Screw, 8-18 X 3/8 |
|
- | |||||
| 5 | WP780239 | Bracket, Retainer (alternate) (2) (Replaces: 780239) |
|
$ 27.17 | |||||
| 6 | WP489069 | Screw, 8 X 1/2ab (6) (Replaces: 776076) |
|
Immediately | $ 7.86 | ||||
| 7 | 9871049 | Escutcheon, Control (white) |
|
- | |||||
| 7 | 9871101 | Escutcheon, Control (black) |
|
- | |||||
| 8 | 776559 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 9 | 4152703 | Strap, Fan |
|
$ 71.73 | |||||
| 10 | 675382 | Switch, Rotary Start-run (Replaces: 608824) |
|
$ 234.74 | |||||
| 11 | WP9871799 | Knob, Rotary Switch (white) (Replaces: 9871093) |
|
$ 64.03 | |||||
| 11 | WP9871800 | Knob, Rotary Switch (black) (Replaces: 9871127) |
|
$ 61.62 | |||||
| 12 | WP777383 | Nut, Rotary Switch (Replaces: 777383) |
|
$ 11.60 | |||||
| 13 | WP4387911 | Switch, Drawer (Replaces: 4152058) |
|
Immediately | $ 39.66 | ||||
| 14 | WP9872161 | Switch, Rocker (white) (Replaces: 9871087) |
|
$ 133.20 | |||||
| 14 | WP9872161 | Switch, Rocker (black) (Replaces: 9871105) |
|
$ 133.20 | |||||
| 15 | 9871893 | Compartment, Air Freshener (Replaces: 4151442) |
|
$ 331.75 | |||||
| 16 | 4153253 | Bezel (white) |
|
- | |||||
| 16 | 780387 | Bezel (black) |
|
- | |||||
| 17 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 780034) |
|
Immediately | $ 6.95 | ||||
| 18 | 9871086 | Switch, Air Freshener (white) |
|
- | |||||
| 18 | 9871104 | Switch, Air Freshener (black) |
|
- | |||||
| 19 | 9870911 | Cover, Air Freshener (white) |
|
$ 49.04 | |||||
| 19 | WP9871099 | Cover, Air Freshener (black) (Replaces: 9871099) |
|
$ 68.24 | |||||
| 20 | WP4151750 | Filter, Charcoal (Replaces: 4151750) |
|
$ 17.71 | |||||
| 21 | 9871084 | End Cap (white, Lh) |
|
- | |||||
| 21 | 9871102 | End Cap (left Hand) (black) |
|
- | |||||
| 21 | 9871085 | End Cap (right Hand) (white) |
|
- | |||||
| 21 | 9871103 | End Cap (right Hand) (black) |
|
- | |||||
| 22 | WP489069 | Screw, 8-18 X 1/2 (Replaces: 780230) |
|
Immediately | $ 7.86 | ||||
| 23 | 9871893 | Fan, Filter (Replaces: 9871051) |
|
$ 331.75 | |||||
| 24 | 4151897 | Clip, Wire |
|
$ 7.05 | |||||
| 25 | 4151897 | S-clip |
|
$ 7.05 | |||||
| 26 | 780417 | Bracket, Switch |
|
- |
