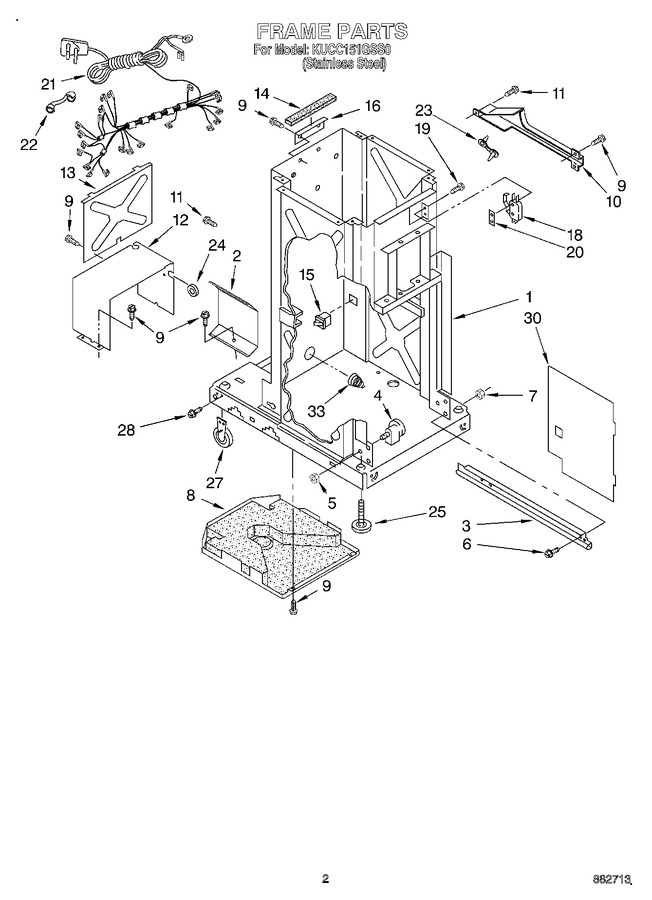

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	9870867		Shield, Slide Track (2)		Appelez-nous	-
3	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 107.33
3	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 134.60
4	882688		Bearing, Roller (2)   (Replaces: 4153788)				$ 20.18
5	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 7.85
6	WP486754		Screw, 6-32 X 3/8 (4)   (Replaces: 777458)				$ 7.50
7	4390387		Nut, 6-32 (4)		Appelez-nous	-
8	WP780437		Pan, Bottom   (Replaces: 780437)				$ 301.53
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 7.75
10	4149659		Shield, Harness		Appelez-nous	-
11	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 6.74
12	780434		Cover, Motor		Appelez-nous	-
13	608009		Plate, Motor Cover				$ 39.79
14	776780		Barrier, Glass		Appelez-nous	-
15	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 71.18
16	775668		Anble, Top Support		Appelez-nous	-
18	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 111.07
19	777849		Screw, 6-20 X 1 (2)				$ 7.01
20	777850		Plate, Nut				$ 73.46
21	9871540		Harness-cord, Power		Appelez-nous	-
22	W11820597		Bushing, Cord   (Replaces: 776119)		Appelez-nous	-
23	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
24	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
25	WPW10001130		Leveler, Front (2)   (Replaces: 775526)			Immediately	$ 7.80
27	W11023674		Wheel, Leveler (2)   (Replaces: 9870585)				$ 51.48
28	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 780034)			Immediately	$ 6.95
30	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 97.07
33	WP777180		Spring, Container   (Replaces: 777180)				$ 93.27
