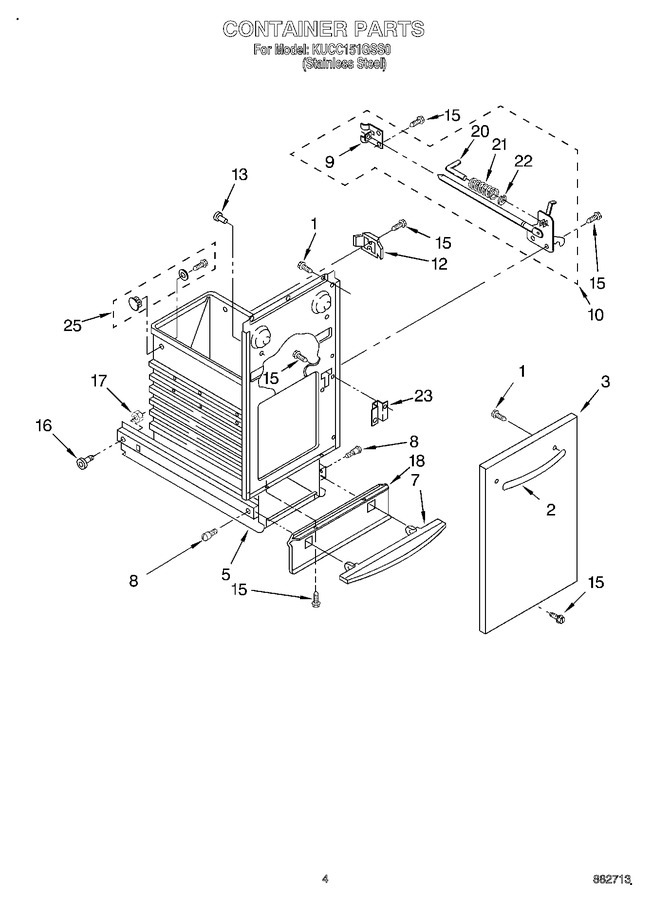

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	246131		Screw, Hex Head		Appelez-nous	-
2	9871564		Handle, Container				$ 113.64
3	9871559		Panel, Container		Appelez-nous	-
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 510.52
7	W11679165		Pedal, Foot   (Replaces: 4149672)				$ 62.46
8	WP780263		Screw, Shoulder No.8-32 X 3/8 (2)   (Replaces: 780263)				$ 8.34
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
12	9871125		Actuator, Saftey Switch				$ 29.37
13	775785		Bumper, Container (2)		Appelez-nous	-
14	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
15	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
16	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	WPW10242557		Plate, Toe Guard   (Replaces: 777328)				$ 142.53
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 93.80
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 62.39
25	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
