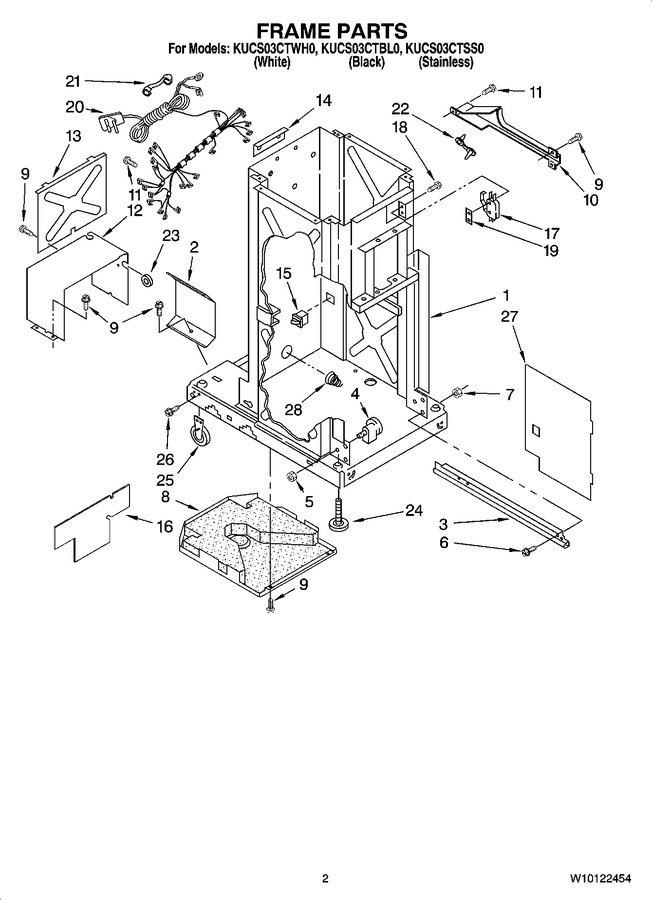

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9870867		Shield, Slide Track (2)		Appelez-nous	-
3	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 141.33
3	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 112.70
4	882688		Bearing, Roller (2)   (Replaces: 4153788)				$ 21.19
5	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
6	WP486754		Screw, 6-32 X 3/8 (4)   (Replaces: 777458)				$ 8.01
7	W11759042		Nut, 6-32 (4)   (Replaces: 3400938)		Appelez-nous	-
8	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 316.61
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
10	4149659		Shield, Harness		Appelez-nous	-
11	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
12	780434		Cover, Motor		Appelez-nous	-
13	608009		Plate, Motor Cover				$ 39.79
14	775668		Angle, Frame Plate		Appelez-nous	-
15	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
16	W11688705		Insulation   (Replaces: 9872154)		Appelez-nous	-
17	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
18	777849		Screw, 6-20 X 1 (2)				$ 7.36
19	777850		Plate, Nut				$ 77.13
20	9872117		Wiring Harness & Power Cord		Appelez-nous	-
21	W11820597		Bushing, Cord   (Replaces: 776119)		Appelez-nous	-
22	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
23	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
24	WPW10001130		Leveler, Front (2)   (Replaces: 775526)			Immediately	$ 7.80
25	W11023674		Wheel, Leveler (2)   (Replaces: 9870585)				$ 54.05
26	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 780034)			Immediately	$ 7.30
27	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
28	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
