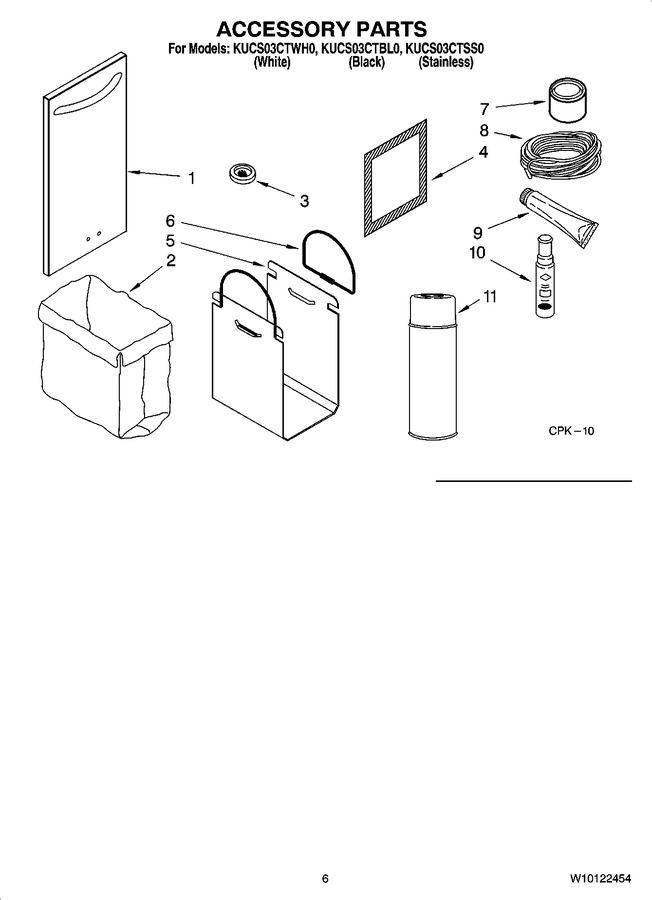

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871805		Panel, Container Front/handle (majestic Yellow W/sst. Handle)		Appelez-nous	-
1	4396299		Panel, Container Front/handle (cobalt Blue/sst.)		Appelez-nous	-
1	4396300		Panel, Container Front/handle (empire Red/sst.)		Appelez-nous	-
1	4396297		Panel, Container Front/handle (white/white)		Appelez-nous	-
1	4396296		Panel, Container Front/handle (black/black)		Appelez-nous	-
1	4396298		Panel, Container Front/handle (biscuit/biscuit)		Appelez-nous	-
2	W10165295RP		Bag, Trash (15`` Plastic) (15 Pack)   (Replaces: 4318921)			Immediately	$ 23.09
2	W10165295BU		Bag, Trash (15`` Plastic) (12 Boxes Of (15 Pack) (15`` Paper))   (Replaces: 94318921)			Immediately	$ 228.91
2	4318922		Bag, Trash (15`` Plastic) (60 Pack)		Appelez-nous	-
2	882652		Bag, Trash (15`` Plastic) (48 Pack)				$ 82.10
2	675186		Bag, Trash (15`` Plastic) (12 Pack)				$ 22.83
3	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
4	9872166LG		Deodorizer Block (lemongrove)		Appelez-nous	-
4	9872166L		Deodorizer Block (lavender)		Appelez-nous	-
4	W10540355		Deodorizer Block (green Apple)   (Replaces: 9872166GA)				$ 15.13
5	13030RP		Carrier, Bag (includes No. 6)   (Replaces: 13030)			Immediately	$ 55.55
6	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 35.23
7	675351		Grease 4 Oz. (use On Power Screw & Ram Pressure Pads)		Appelez-nous	-
8	47261		Wire, 25`` Roll (black 12 Ga.)		Appelez-nous	-
8	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
8	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
8	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
8	47263		Wire, 25`` Roll (white 12 Ga.)		Appelez-nous	-
8	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
8	299885		Wire, 25` Roll (red 12 Ga.)		Appelez-nous	-
9	WP279368		Adhesive, Insulation (2oz Tube)   (Replaces: 279368)			Immediately	$ 110.91
10	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
10	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
10	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
10	4892899		Paint, Touch-up 1/2 Oz. (biscuit)		Appelez-nous	-
10	8171571		Paint, Touch-up 1/2 Oz. (cobalt Blue)				$ 30.53
10	8171651		Paint, Touch-up 1/2 Oz. (hunter Green)				$ 20.17
10	8171652		Paint, Touch-up 1/2 Oz. (empire Red)				$ 30.22
10	8171653		Paint, Touch-up 1/2 Oz. (majestic Yellow)		Appelez-nous	-
11	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
11	285006		Paint, Spray 13 Oz. (black)				$ 57.04
11	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	882763		Framed Trim Kits (white)   (Replaces: 9871382)				$ 143.75
	W10083931A		Previous Architect Series Handle Kit (stainless Steel)   (Replaces: 8564945)				$ 93.53
	9871600		Framed Trim Kits (biscuit)		Appelez-nous	-
	9871383		Framed Trim Kits (black)		Appelez-nous	-
