SELECT A DIAGRAM

01 - Compressor

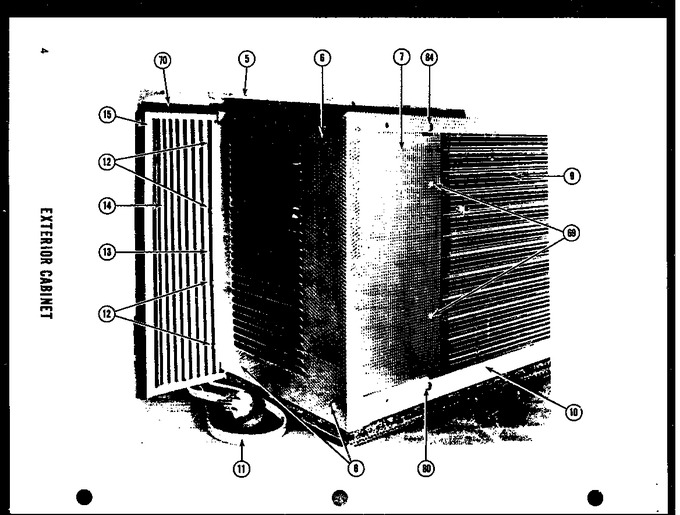

02 - Exterior Cabinet


03 - Interior Parts


04 - Interior Parts


05 - Interior Parts


06 - Page 1


07 - Refrigeration System


08 - Window Mount Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	D5402901		Weldment, Outer Case		Appelez-nous	-
8	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
9	C5800401		Condenser Assy		Appelez-nous	-
10	D5400701		Base Pan		Appelez-nous	-
11	B4113204		Power Cord		Appelez-nous	-
12	M0211516		Screw A K		Appelez-nous	-
13	B5149601		Bakstrip		Appelez-nous	-
14	D5403201		Curtain Mtg Assy		Appelez-nous	-
15	D5403001		Sliding Frame, R.h.		Appelez-nous	-
69	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
70	A3030313		Gasket (per Foot)		Appelez-nous	-
84	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
NI	A3030326		Gasket		Appelez-nous	-
NI	A4528701		Strip, Sash Seal		Appelez-nous	-
NI	B5156001		Gasket, Base Pan Bottom, Under		Appelez-nous	-
NI	B5156101		Gasket, Base Pan Bottom, Under		Appelez-nous	-
NI	M0212062		Screw		Appelez-nous	-
NI	M0270504		Washer		Appelez-nous	-
NI	A3030302		Gasket		Appelez-nous	-
NI	A4065501		Spacer K		Appelez-nous	-
NI	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
NI	M0211532		Screw		Appelez-nous	-
NI	A3030301		Gasket (inch)		Appelez-nous	-
NI	M0236004		Screw		Appelez-nous	-
NI	M0010508		X$x Nail		Appelez-nous	-
NI	B5150401		Insulation, Outer Case		Appelez-nous	-
NI	B5150001		Plate, Back		Appelez-nous	-
NI	A4622201		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
