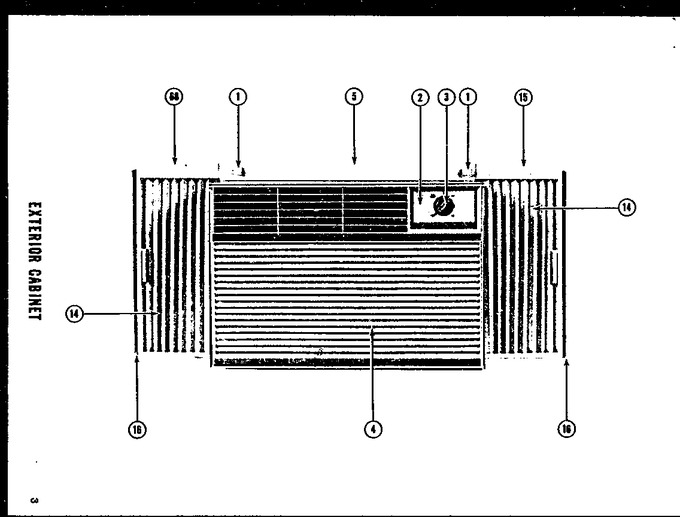

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0234539		Thumb Screw		Appelez-nous	-
2	B5153901		Escutcheon		Appelez-nous	-
3	C5802504		Knob, Control		Appelez-nous	-
4	D5402801		Front, Cabinet		Appelez-nous	-
5	C5299401		Rail, Top		Appelez-nous	-
16	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
NI	M0116301		Clip		Appelez-nous	-
NI	A4635701		Filter		Appelez-nous	-
NI	A3030309		Gasket (per Foot)		Appelez-nous	-
NI	YM0115901		Clip, Knob Mounting		Appelez-nous	-
NI	A3030329		Gasket-per Ft		Appelez-nous	-
NI	A3030310		Gasket (per Foot)		Appelez-nous	-
NI	A3030301		Gasket (inch)		Appelez-nous	-
NI	A4542805		Retainer		Appelez-nous	-
NI	A4642101		Spring		Appelez-nous	-
NI	C5298401		Air Deflector		Appelez-nous	-
