01 - Cabinet, Literature
02 - Refrigerator Liner
03 - Freezer Liner
04 - Refrigerator Door
05 - Freezer Door
06 - Air Flow
07 - Unit
08 - Control, Optional
SELECT A DIAGRAM
New Model Search:

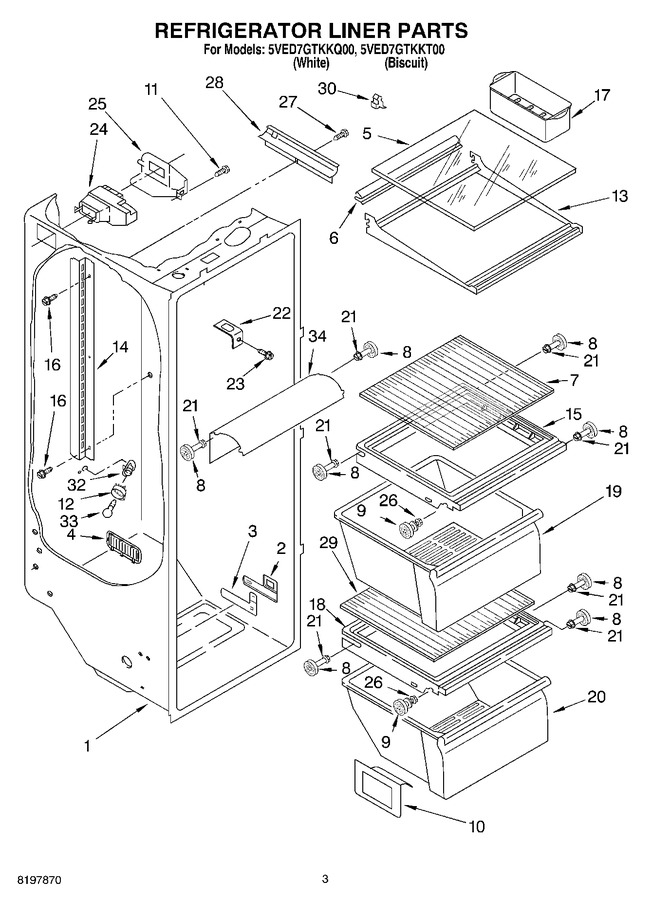

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 86.26 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 5 | 2177986 | Glass (3) |
|
$ 90.50 | |||||
| 6 | 1125594 | Retainer, Glass |
|
- | |||||
| 7 | W10864399 | Glass, Crisper Cover (Replaces: 2174150) |
|
$ 208.83 | |||||
| 8 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 9.78 | |||||
| 9 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 13.29 | ||||
| 10 | 2179350 | Deflector, Air |
|
$ 77.30 | |||||
| 11 | W10759522 | Screw (2) (Replaces: 486298) |
|
$ 7.42 | |||||
| 12 | WP2175210 | Shroud, Light (Replaces: 2169193) |
|
$ 78.07 | |||||
| 13 | 2163572 | Shelf Assembly, Cantilever (3) |
|
- | |||||
| 14 | 2206273 | Ladder, Shelf (2) |
|
- | |||||
| 15 | W10508993 | Crisper Cover (Replaces: 2209698) |
|
$ 275.27 | |||||
| 16 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 17 | W10136387A | Egg Bin (Replaces: 2189653) |
|
$ 17.59 | |||||
| 18 | 2217039 | Meat Pan Cover |
|
- | |||||
| 19 | WP2188661 | Crisper Pan (Replaces: 2196481) |
|
Immediately | $ 176.82 | ||||
| 20 | WP2188664 | Meat Pan (Replaces: 2196162) |
|
Immediately | $ 83.43 | ||||
| 21 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.29 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 32.49 | |||||
| 23 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.67 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 94.29 | ||||
| 25 | 2152019 | Air Diffuser Cover |
|
$ 81.30 | |||||
| 26 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.23 | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.42 | |||||
| 28 | 2150331 | Cover, Wiring |
|
$ 23.06 | |||||
| 29 | W10864399 | Glass, Meat Cover (Replaces: 2179259) |
|
$ 208.83 | |||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 9.85 | |||||
| 32 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 33 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.11 | ||||
| 34 | 2206269 | Light Lens |
|
- |
