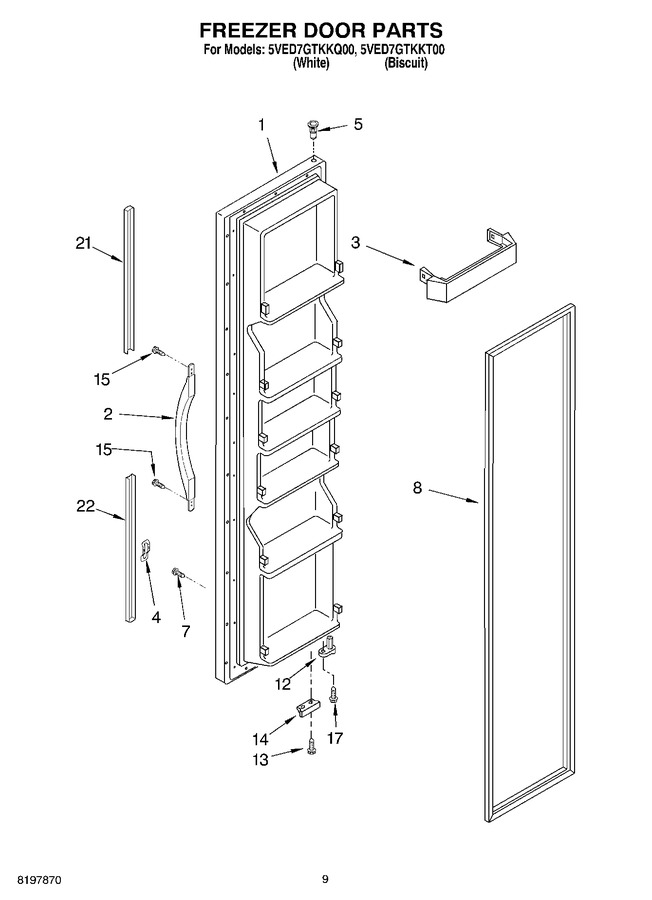

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2206730W | Freezer Door (includes No.8) (white) |
|
- | |||||
| 1 | 2206730T | Freezer Door (includes No.8) (biscuit) |
|
- | |||||
| 2 | 2186649T | Handle (biscuit) |
|
- | |||||
| 2 | 2186649W | Handle (white) |
|
$ 70.49 | |||||
| 3 | 2182794 | Trivet |
|
- | |||||
| 4 | WP2195327 | Clip (4) (Replaces: 2195327) |
|
$ 6.99 | |||||
| 5 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 7.34 | |||||
| 7 | WP3400852 | Screw (4) (Replaces: 3400852) |
|
$ 9.30 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (Replaces: 2196244) |
|
$ 293.13 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 14 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 38.51 | |||||
| 15 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 6.57 | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 21 | 2194973T | Trim, Door-top (biscuit) |
|
- | |||||
| 21 | 2194973W | Trim, Door-top (white) |
|
$ 5.65 | |||||
| 22 | 2194969T | Trim, Door-bottom (biscuit) |
|
- | |||||
| 22 | 2194969W | Trim, Door-bottom (white) |
|
$ 5.51 |
