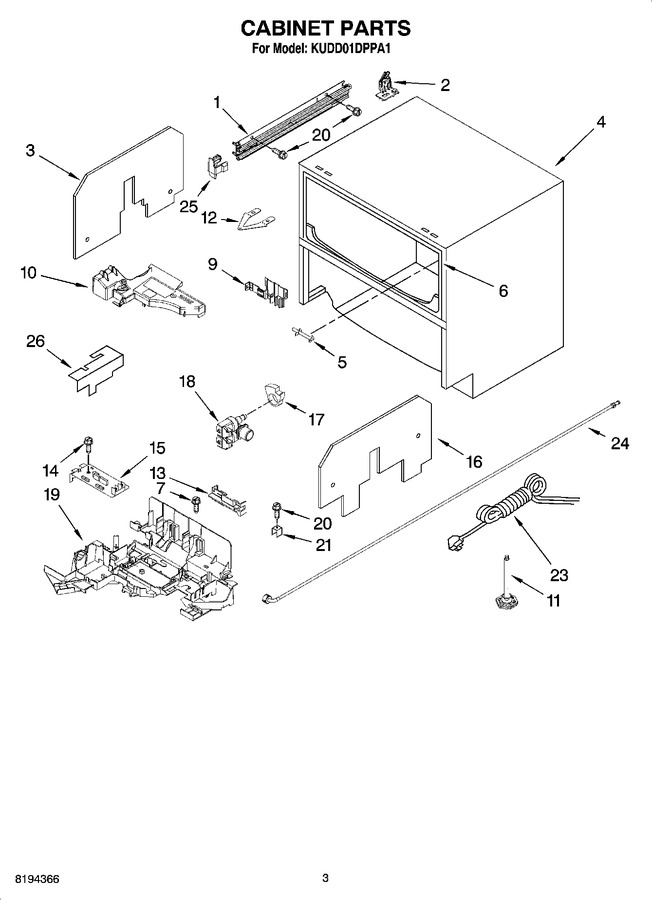

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8194051		Track (right Hand)				$ 125.28
1	8194050		Track (left Hand)				$ 116.35
2	8194052		Latch, Drawer (right Hand)				$ 23.18
2	8194053		Latch, Drawer (left Hand)				$ 44.30
3	8194054		Insulation, Cabinet		Appelez-nous	-
4	8194055		Cabinet		Appelez-nous	-
5	8194056		Prisim				$ 24.69
6	8194057		Trim, Seal		Appelez-nous	-
7	8194134		Screw		Appelez-nous	-
9	8194058		Mount, Link Top		Appelez-nous	-
10	8194059		Module, Lid Cabinet				$ 76.47
11	8194060		Foot		Appelez-nous	-
12	8194061		Bracket, Undercounter				$ 18.20
13	8194062		Retainer, Link		Appelez-nous	-
14	8194063		Screw		Appelez-nous	-
15	8194064		Board, Circuit				$ 105.32
16	8194066		Insulation, Cabinet (bottom Right)		Appelez-nous	-
16	8194065		Insulation, Cabinet (bottom Left)		Appelez-nous	-
17	8194067		Clamp				$ 4.85
18	8194068		Valve, Inlet				$ 102.78
19	8194069		Module, Cabinet				$ 56.03
20	8194133		Screw		Appelez-nous	-
21	8194116		Strain Relief		Appelez-nous	-
23	8194070		Cord, Power				$ 71.74
24	8194071		Hose-fill				$ 61.44
25	8194072		Clip, Drawer (right Hand)				$ 26.40
25	8194073		Clip, Drawer (left Hand)		Appelez-nous	-
26	8194136		Shield		Appelez-nous	-
