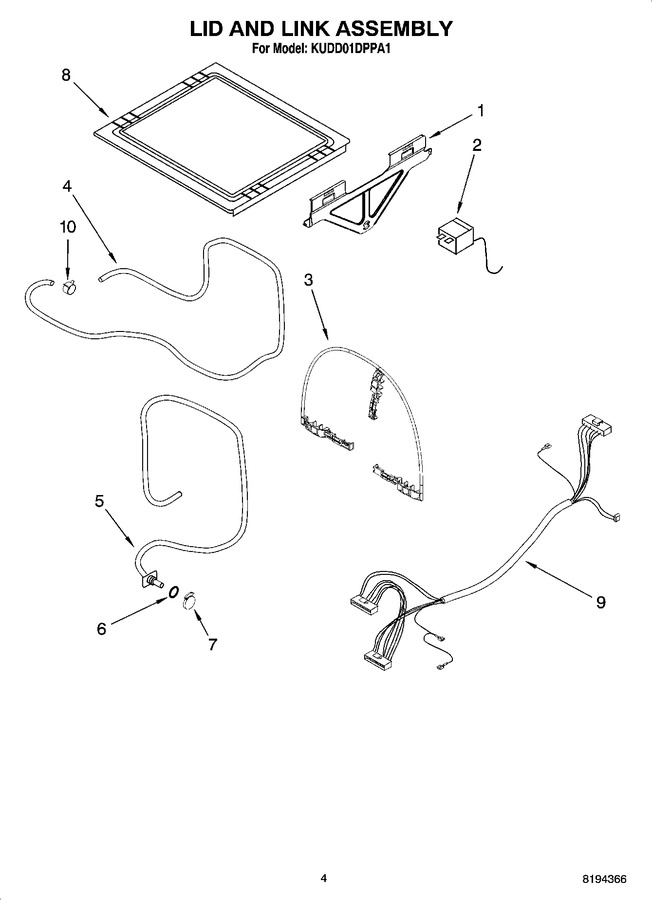

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8194074 | Yoke, Lid (right) |
|
- | |||||
| 1 | 8194075 | Yoke, Lid (left) |
|
- | |||||
| 2 | 8194077 | Actuator, Lid (bottom Drawer) |
|
$ 105.49 | |||||
| 2 | 8194076 | Actuator, Lid (top Drawer) |
|
$ 112.44 | |||||
| 3 | 8194078 | Support, Link |
|
- | |||||
| 4 | 8194367 | Hose, Fill (bottom Drawer) |
|
- | |||||
| 4 | 8194368 | Hose, Fill (top Drawer) |
|
- | |||||
| 5 | 8194081 | Hose, Drain |
|
$ 62.27 | |||||
| 6 | 8194082 | O-ring |
|
$ 29.64 | |||||
| 7 | 8194083 | Valve, Check |
|
$ 36.94 | |||||
| 8 | 8194084 | Lid Assembly |
|
$ 117.87 | |||||
| 9 | 8194086 | Wiring Harness (upper Cabinet) |
|
$ 103.69 | |||||
| 9 | 8194085 | Wiring Harness (lower Cabinet) |
|
$ 102.13 | |||||
| 10 | 8194087 | Clamp, Hose |
|
- |
