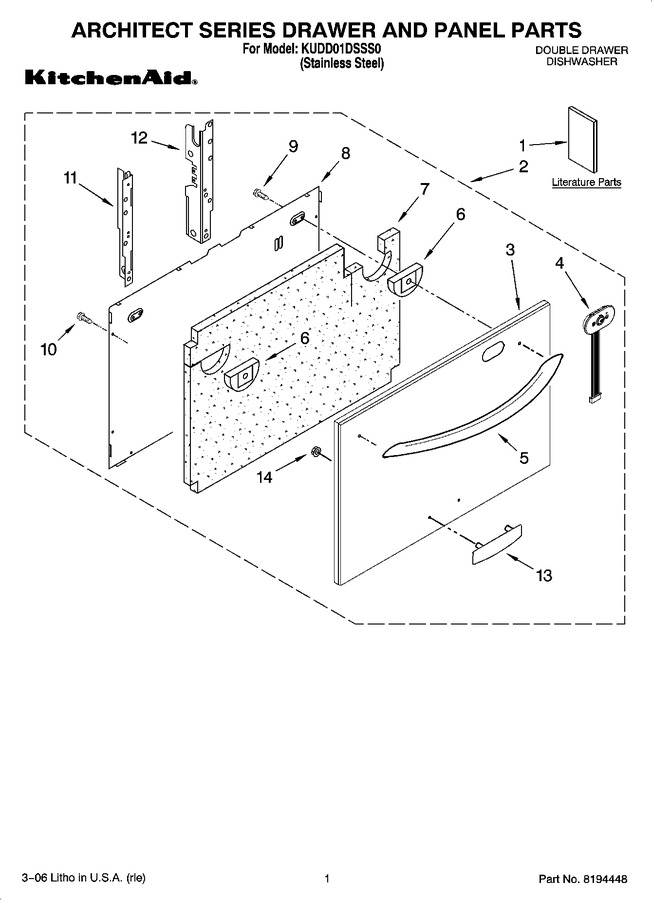

01 - Architect Series Drawer And Panel Parts
02 - Cabinet Parts
03 - Lid And Link Assembly
04 - Drawer Parts
05 - Dishrack Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8194446 | Instructions, Installation |
|
- | |||||
| 1 | 8194421 | Energy Guide |
|
- | |||||
| 1 | 8194445 | Guide, Use & Care |
|
- | |||||
| 1 | 8546449 | Tech Sheet |
|
- | |||||
| 1 | 8194447 | Dvd |
|
- | |||||
| 2 | 8194434 | Drawer Panels Complete (upper) |
|
- | |||||
| 2 | 8194435 | Drawer Panels Complete (lower) |
|
- | |||||
| 3 | 8194436 | Panel, Drawer (upper) |
|
- | |||||
| 3 | 8194437 | Panel, Drawer (lower) |
|
- | |||||
| 4 | 8194425 | Control |
|
$ 210.42 | |||||
| 5 | 8557792 | Handle |
|
$ 67.80 | |||||
| 6 | 8194426 | Plate, Backing |
|
- | |||||
| 7 | 8194438 | Insulation (lower) |
|
- | |||||
| 7 | 8194427 | Insulation (upper) |
|
- | |||||
| 8 | 8194440 | Panel, Support (lower) |
|
- | |||||
| 8 | 8194439 | Panel, Support (upper) |
|
- | |||||
| 9 | 8194429 | Screw |
|
- | |||||
| 10 | 8194430 | Screw |
|
- | |||||
| 11 | 8194431 | Bracket, Left |
|
- | |||||
| 12 | 8194432 | Bracket, Right |
|
- | |||||
| 13 | 2005292 | Nameplate Lower Drawer Only |
|
$ 52.20 | |||||
| 14 | WP2004333 | Nut (Replaces: 2004333) |
|
$ 11.24 |
