SELECT A DIAGRAM

01 - Architect Series Drawer And Panel Parts


02 - Cabinet Parts


03 - Lid And Link Assembly

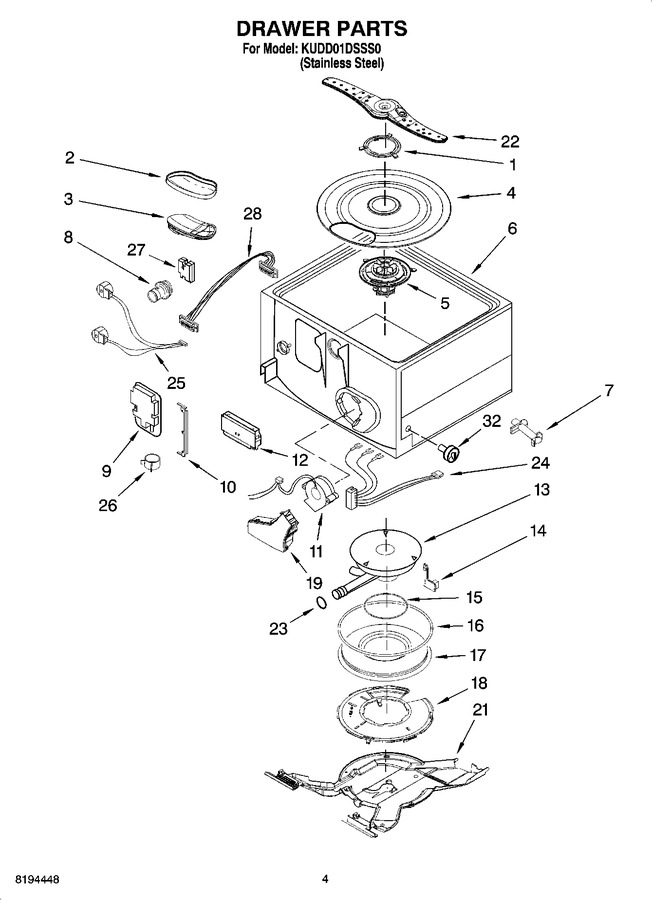

04 - Drawer Parts


05 - Dishrack Parts


06 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8194088		Nut, Lock Filter Plate				$ 44.28
2	8194089		Trim, Filter				$ 24.16
3	8194090		Filter				$ 116.07
4	8194409		Filter, Plate		Appelez-nous	-
5	WP8194092		Rotor Assembly   (Replaces: 8194092)				$ 335.54
6	8194443		Drawer		Appelez-nous	-
7	8194094		Tube		Appelez-nous	-
8	8194095		Cap, Rinse Aid		Appelez-nous	-
9	8194096		Dispenser, Detergent				$ 125.81
10	8194097		Bracket, Dipenser		Appelez-nous	-
11	8194098		Fan Assembly				$ 119.07
12	8194444		Control, Electronic				$ 212.84
13	WP8194101		Motor Assembly (also Order Items 15, 16, 23)   (Replaces: 8194101)				$ 393.62
14	8194102		Hall Effect				$ 140.90
15	8194103		Seal, Motor Housing				$ 40.37
16	8194104		Seal, Heater Plate/tub				$ 66.26
17	8194105		Heater, Plate (also Order Items 15 & 16)				$ 123.68
18	8194106		Nut, Locking				$ 25.97
19	8194107		Duct		Appelez-nous	-
21	8194109		Protector, Wiring		Appelez-nous	-
22	8194110		Spray-arm				$ 60.56
23	8194082		O-ring				$ 29.64
24	8194112		Wiring Harness Motor				$ 93.81
25	8194113		Wiring Harness Dispenser				$ 28.54
26	8194087		Clamp		Appelez-nous	-
27	8194188		Protector				$ 54.53
28	8194194		Wiring Harness, Protector				$ 93.11
32	8194193		Pin, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
