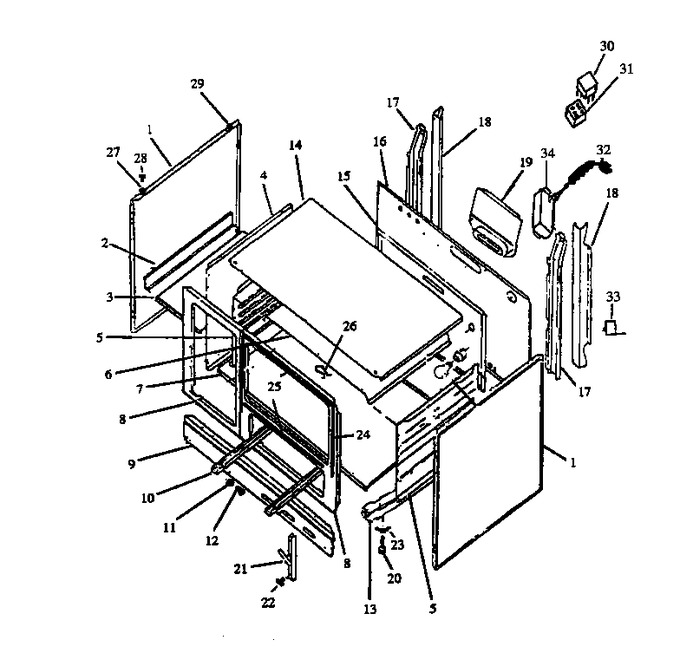

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313762W | Panel, Texture Body |
|
- | |||||
| 2 | Y0088076 | Support, Shelf |
|
- | |||||
| 3 | 0088058 | Shelf, Cabinet |
|
- | |||||
| 4 | 0057201 | Shield, Short Side Assy. |
|
- | |||||
| 5 | 0311807 | Liner,oven Side |
|
- | |||||
| 6 | Y06470901E | Liner, Oven Top 24`` |
|
- | |||||
| 7 | 0311052 | Bottom Baffle |
|
- | |||||
| 8 | Y00000000 | See Note Front Frame -- (not Field Replaceable |
|
- | |||||
| 9 | Y0057228 | Panel, Toe 36`` (black) |
|
- | |||||
| 10 | Y0313760 | Track, Lower L.h. |
|
- | |||||
| 10 | Y0313761 | Track, Lower R.h. |
|
- | |||||
| 11 | Y00000000 | See Note Roller -- (part Of Track Assembly) |
|
- | |||||
| 12 | Y00000000 | See Note Roller Pin -- (part Of Track Assembly) |
|
- | |||||
| 13 | 06554900 | Rail, Base |
|
- | |||||
| 14 | Y06469401E | Burner Box 36`` |
|
- | |||||
| 15 | 88550CG | Back, Oven 24`` ( Cg) |
|
- | |||||
| 16 | Y0088533 | Main Back |
|
- | |||||
| 17 | 0052742 | Vertical Sup. (j) |
|
- | |||||
| 18 | 0056477 | Support, Rear, Vertical {j} |
|
- | |||||
| 19 | 0088718 | Flue Box |
|
- | |||||
| 20 | Y0062362 | Leg, Leveling |
|
- | |||||
| 21 | Y0052778 | Hinge |
|
- | |||||
| 22 | WP4159193 | Screw,philip Pan Hd 10-24x5/16 (Replaces: Y0310611) |
|
$ 5.07 | |||||
| 22 | 0310233 | Screw (j) |
|
- | |||||
| 23 | Y0088571 | Snap-in Tee Nut |
|
- | |||||
| 24 | Y0056090 | Seal, Oven-sides |
|
- | |||||
| 25 | Y0056092 | Seal, Oven-top & Bottom 24`` |
|
- | |||||
| 26 | 0310802 | Clip, Capillary |
|
- | |||||
| 27 | 0311086 | Stud, Locating - Nylon |
|
- | |||||
| 28 | Y0312844 | Screw |
|
- | |||||
| 29 | Y0063661 | Bumper, Oven Door |
|
- | |||||
| 30 | Y0088643 | Connector |
|
- | |||||
| 31 | Y0087016 | Pin, Connector |
|
- | |||||
| 32 | 0313772 | Ass`y Power Cord |
|
- | |||||
| 33 | 07687600 | Kit, Anti-tip |
|
- | |||||
| 34 | 06462000 | Cover, Spark Module |
|
- |
