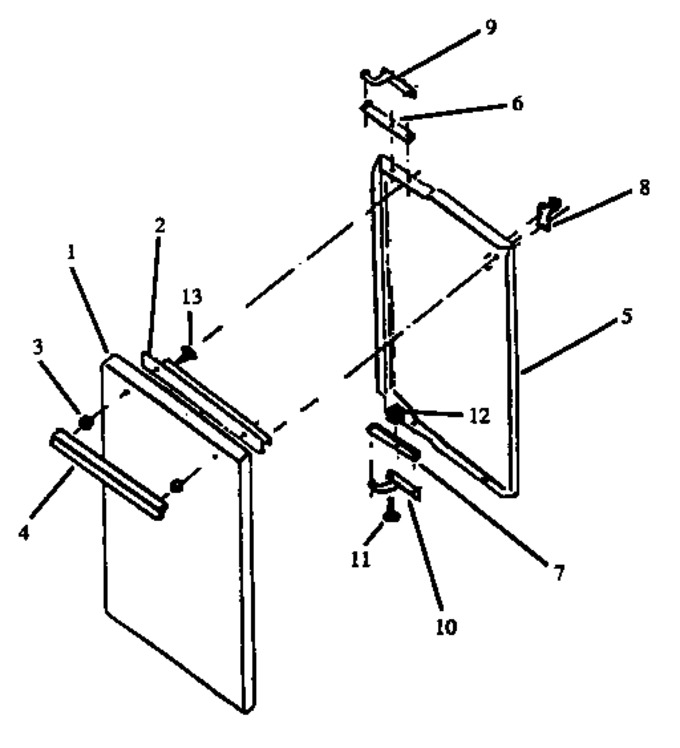

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313755W		Panel, Cabinet Door (white)		Appelez-nous	-
2	0088073		Bracket, Handle		Appelez-nous	-
3	Y0310818		Handle Spacer, Plastic (j)		Appelez-nous	-
4	Y0052776		Handle, Oven Door (j)		Appelez-nous	-
5	06546902		Liner, Door		Appelez-nous	-
6	0088075		Hinge, Top		Appelez-nous	-
7	0088074		Hinge, Bottom		Appelez-nous	-
8	0310014		Catch		Appelez-nous	-
9	0088078		Hinge Arm, Top		Appelez-nous	-
10	0088077		Hinge Arm, Bottom		Appelez-nous	-
11	Y0087007		Screw, No.10 X 3/8``		Appelez-nous	-
12	0310242		Nut-sqr		Appelez-nous	-
13	Y0311884		Screw, Door Handle		Appelez-nous	-
