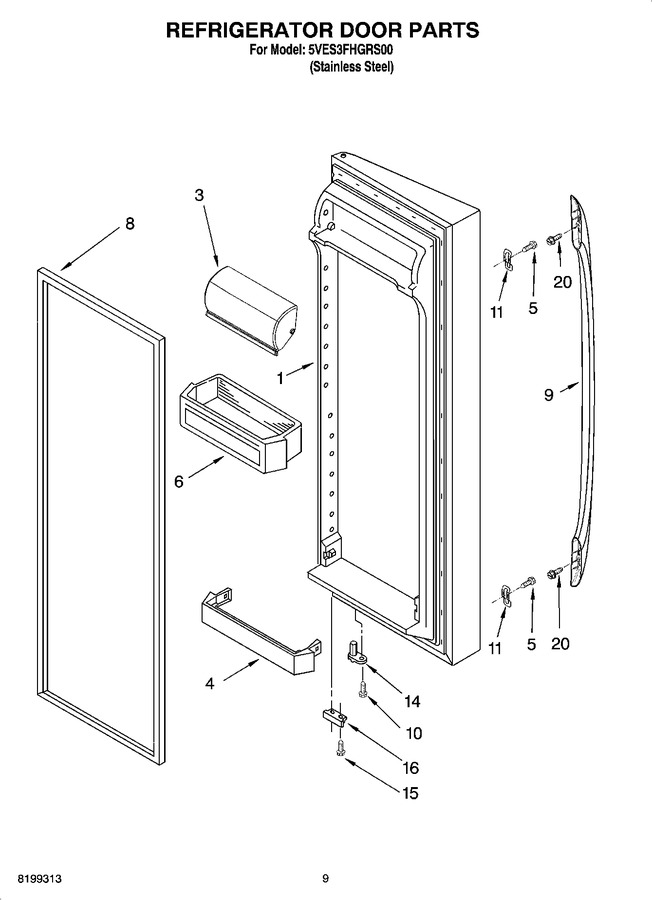

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2305969SB | Refrigerator Door (includes Item 8) (stainless Steel) |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022K) |
|
Immediately | $ 72.80 | ||||
| 5 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 6 | WP2203828 | Door Bin (3) (Replaces: 2203828K) |
|
$ 95.52 | |||||
| 8 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2221311) |
|
$ 319.60 | |||||
| 9 | 2308115B | Handle (black) |
|
- | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 11 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 16 | 2200082B | Bracket, Door Stop |
|
$ 42.44 | |||||
| 20 | 8533920 | Screw |
|
$ 5.27 |
