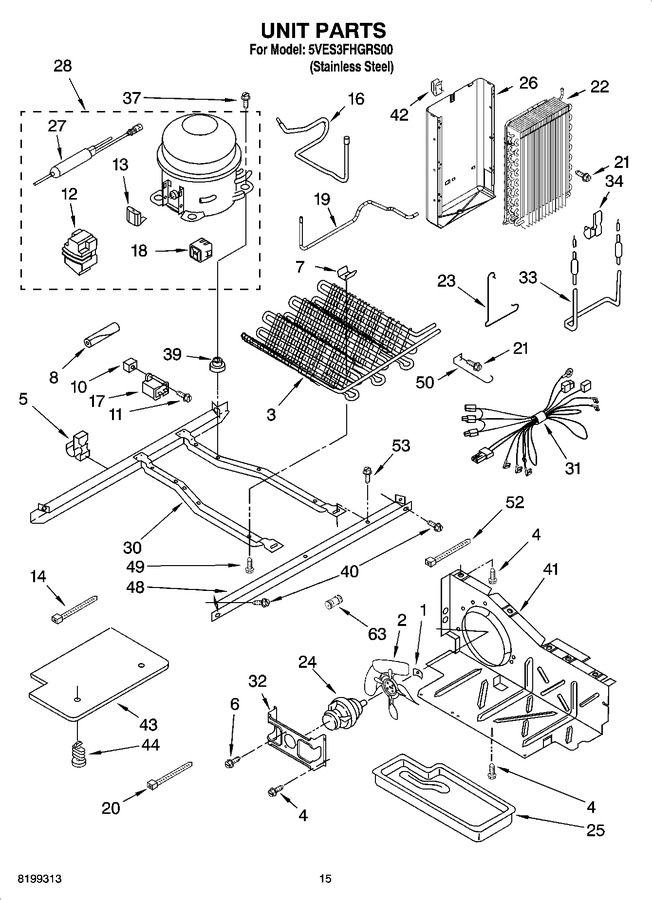

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Fan, Blade				$ 52.00
3	2324712		Condenser Assembly   (Replaces: 2223953)				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
10	509812		Screw Grommet		Appelez-nous	-
11	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
12	WP61002138		Cover (service Only)   (Replaces: 4387959)				$ 8.77
13	4388786		Overload (service Only, Includes Relay)   (Replaces: 4388101)		Appelez-nous	-
14	WPW10339879		Wire Tie   (Replaces: 2221306)				$ 7.90
16	2205764		Tube Suction				$ 89.18
17	WP2201147		Capacitor   (Replaces: 2201147)				$ 128.97
18	2188834		Start-device, Combination (start Relay And Overload) For Production				$ 67.74
19	2261599		Tube, Condenser To Heat Loop				$ 243.67
20	WP2205813		Strap   (Replaces: 2205813)				$ 7.72
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
23	2161324		Clamp		Appelez-nous	-
24	8201703		Fan, Motor   (Replaces: 2188539)				$ 371.70
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2304288		Heat Shield		Appelez-nous	-
27	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
27	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
28	W10183407		Compressor (includes Items 12, 13, 17, 27 & 39) (also Order 876765 Tube Kit)   (Replaces: 2187162)				$ 414.86
30	2304903		Unit Mounting Frame   (Replaces: 2160501)				$ 244.68
31	2187999		Unit, Harness		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2313330		Heater, Defrost   (Replaces: 2188176)				$ 155.36
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
39	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 14.49
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2200465		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	2186496		Guard, Fan		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
63	N/A		And Optional Parts Not Included		Appelez-nous	-
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	WP4373559		Connector, Water Tube   (Replaces: 2209709)				$ 77.35
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
