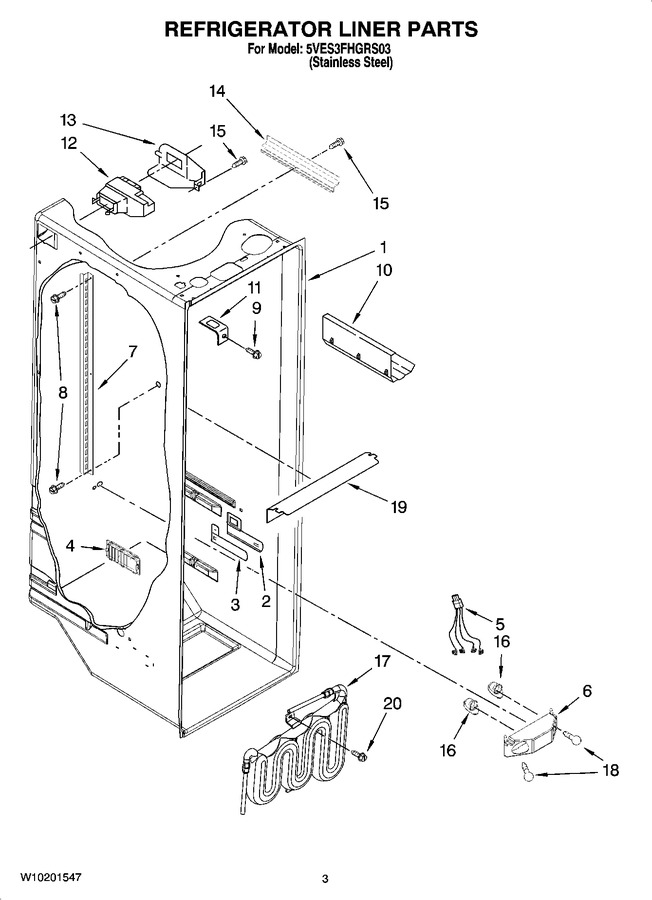

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W10123602		Wire Harness, Dual Crisper		Appelez-nous	-
6	2256035		Bracket, Dual Crisper Light				$ 62.54
7	2206270		Ladder, Shelf		Appelez-nous	-
8	WP489478		Screw   (Replaces: 489478)				$ 8.18
9	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
10	W10777924		Rack, Wine & Egg   (Replaces: 2179375)				$ 24.78
11	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 36.10
12	WPW10151378		Air Diffuser Assembly   (Replaces: W10151378)				$ 327.13
13	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 138.15
14	2150331		Cover, Conduit				$ 25.62
15	W10759522		Screw   (Replaces: W10004810)				$ 8.24
16	W11447232		Socket   (Replaces: W10134764)			Immediately	$ 13.87
17	WPW10276792		Reservoir   (Replaces: 2307107)				$ 144.45
18	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
19	2209769		Light Lens		Appelez-nous	-
20	488280		Screw (2)		Appelez-nous	-
