01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

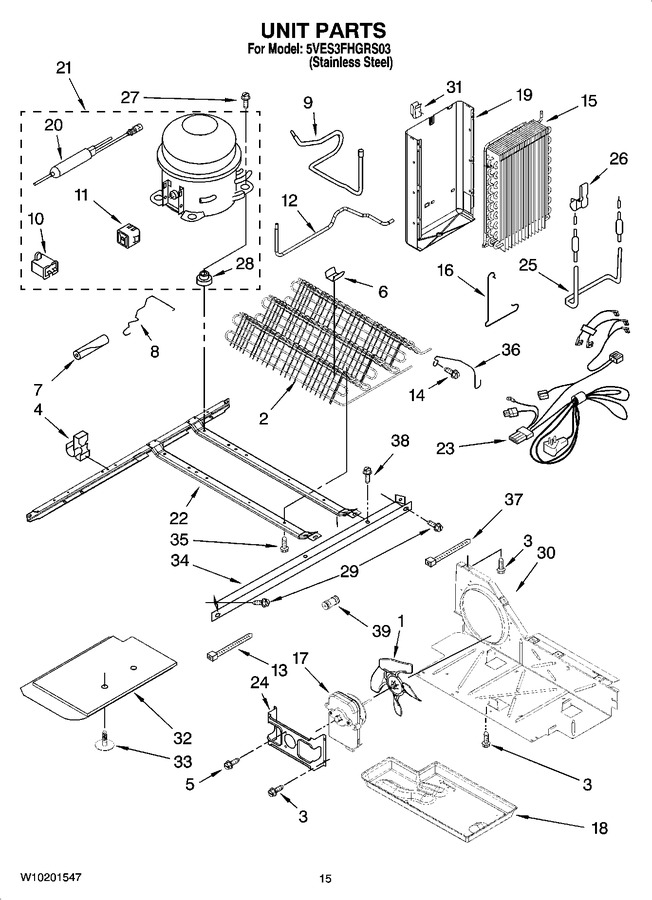

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
2	2324712		Condenser Assembly   (Replaces: W10121484)				$ 308.05
3	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
4	2208280		Clip, Wire & Tube		Appelez-nous	-
5	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
6	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
8	2302129		Bale Strap		Appelez-nous	-
9	2205764		Tube Suction				$ 84.93
10	2321245		Capacitor		Appelez-nous	-
11	WP2312007		Start-device, Combination (start Relay And Overload) For   (Replaces: 2312007)				$ 180.66
12	2325479		Tube, Condenser To Heat Loop		Appelez-nous	-
13	WP2205813		Strap   (Replaces: 2205813)				$ 7.72
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
16	2161324		Clamp		Appelez-nous	-
17	WP2321271		Fan, Motor   (Replaces: 2321271)				$ 309.96
18	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
19	2304288		Heat Shield		Appelez-nous	-
20	WPW10143759		Drier   (Replaces: 2317845)			Immediately	$ 30.78
21	W10183407		Compressor (includes Items 10, 11, 20, & 28) (also Order 876765 Tube Kit)   (Replaces: W10120455)				$ 414.86
22	2304903		Unit Mounting Frame				$ 233.03
23	W10123598		Unit, Harness		Appelez-nous	-
24	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
25	WPW10123612		Heater, Defrost   (Replaces: W10123612)				$ 83.57
26	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
27	876811		Screw   (Replaces: 489373)				$ 7.42
28	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 14.49
28	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
29	489340		Screw		Appelez-nous	-
30	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
31	2155547		Clip, Heat Shield		Appelez-nous	-
32	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 517.91
33	489396		Clip				$ 10.72
34	2149718		Unit Mounting Rail		Appelez-nous	-
35	W11544659		Screw   (Replaces: 8281232)				$ 13.67
36	2186496		Guard, Fan		Appelez-nous	-
37	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
38	WP489427		Screw   (Replaces: 489427)				$ 7.47
39	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 21.59
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
