SELECT A DIAGRAM

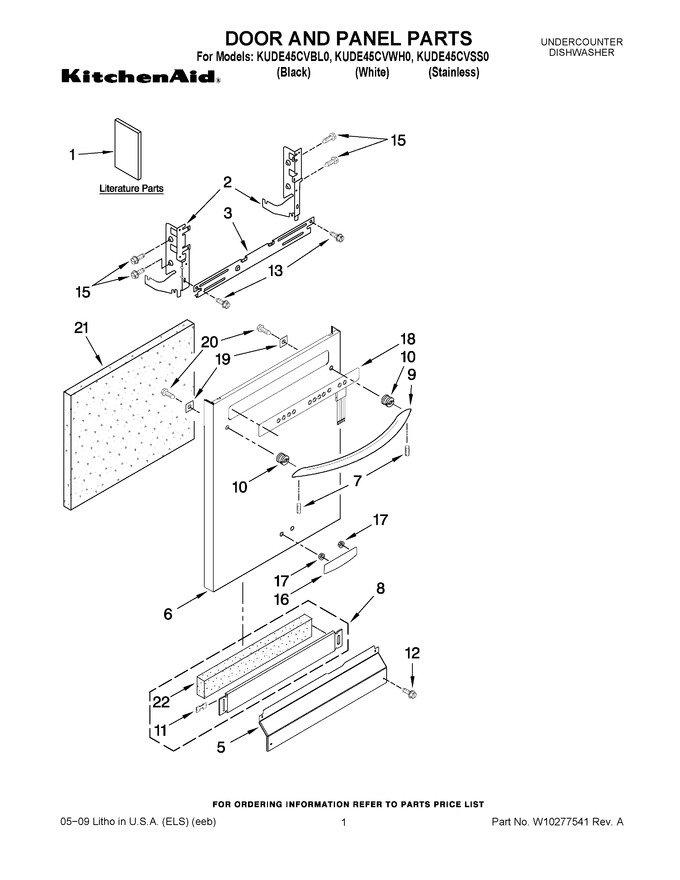

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158347		Tech Sheet (french)		Appelez-nous	-
1	W10056407		Instructions,installation		Appelez-nous	-
1	W10247468		Energy Guide		Appelez-nous	-
1	W10208709		Guide, Use & Care English		Appelez-nous	-
1	W10208710		Guide, Use & Care Spanish		Appelez-nous	-
1	W10142826		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
6	W10137621		Panel, Full Front (includes Items 10, 16, 17, 19, 20 & 21) (stainless)				$ 218.59
6	W10078000		Panel, Full Front (includes Items 10, 16, 17, 19, 20 & 21) (white)				$ 190.62
6	W10077999		Panel, Full Front (includes Items 10, 16, 17, 19, 20 & 21) (black)				$ 167.31
7	WP8534008		Screw   (Replaces: 8534008)				$ 9.37
8	WPW10586591		Toe Panel (includes Items 11 & 22) (white)   (Replaces: 8558253)				$ 309.39
8	W10871196		Toe Panel (includes Items 11 & 22) (black)   (Replaces: 8558252)				$ 174.04
9	W10257145		Handle Assy (includes Item 7) (stainless)				$ 55.36
9	W10257146		Handle Assy (includes Item 7) (black)				$ 42.06
9	W10257147		Handle Assy (includes Item 7) (white)				$ 42.68
10	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
11	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10021850		Nameplate (stainless)				$ 62.01
16	W10021870		Nameplate (white)				$ 128.26
16	W10021860		Nameplate (black)				$ 109.94
17	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
18	W10238437		Bezel Assembly (black)				$ 370.63
18	W10238439		Bezel Assembly (stainless)		Appelez-nous	-
18	W10238437		Bezel Assembly (white)   (Replaces: W10238438)				$ 370.63
19	W10133538		Plate, Backing		Appelez-nous	-
20	W10123421		Screw				$ 12.83
21	WPW10073520		Insulation, Panel   (Replaces: W10073520)				$ 96.23
22	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
