SELECT A DIAGRAM
New Model Search:

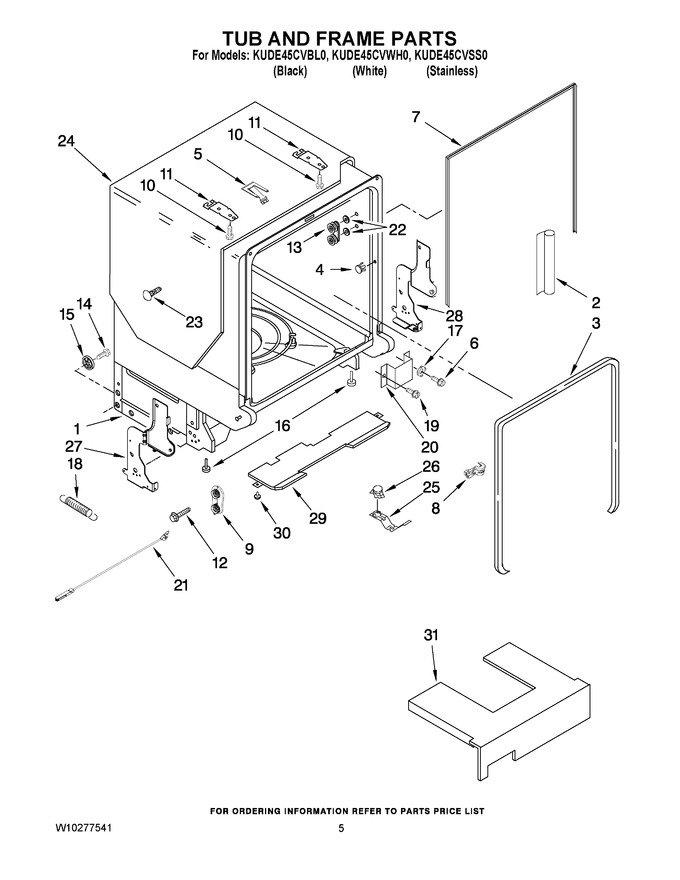

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10164353 | Tub Assembly (also Includes Heater Assembly) |
|
- | |||||
| 2 | 8574123 | Barrier, Moisture Undercounter |
|
$ 71.34 | |||||
| 3 | W11196317 | Door Seal (Replaces: W10112096) |
|
Immediately | $ 94.26 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 15.06 | ||||
| 5 | W10077370 | Strike, Plate |
|
- | |||||
| 6 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 | |||||
| 7 | W10864081 | Seal, Cabinet (Replaces: 8269110) |
|
Immediately | $ 84.31 | ||||
| 8 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 9 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 33.02 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 11 | WP8269145 | Bracket,undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 12 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.55 | |||||
| 13 | WPW10078083 | Wheel, Tub (Replaces: W10078083) |
|
Immediately | $ 53.05 | ||||
| 14 | 3370389 | Screw |
|
$ 5.70 | |||||
| 15 | WP8268977 | Wheel Leg (Replaces: 8268977) |
|
$ 15.19 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 18 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 36.69 | ||||
| 19 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 20 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 21 | 8194001 | Cable, Door Assembly (Replaces: W10158291) |
|
Immediately | $ 43.06 | ||||
| 22 | WP9743002 | Gasket, Bracket Mounting (Replaces: 9743002) |
|
Immediately | $ 10.04 | ||||
| 23 | WP304666 | Retainer, Push (Replaces: 304666) |
|
$ 29.45 | |||||
| 24 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 233.63 | |||||
| 25 | 9742648 | Bracket,thermostat |
|
$ 51.51 | |||||
| 26 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 27 | W10185368 | Bracket, Hinge Lh |
|
- | |||||
| 28 | W10185369 | Bracket, Hinge Rh |
|
- | |||||
| 29 | WPW10746770 | Insulation, Bottom (Replaces: 8268582) |
|
$ 44.84 | |||||
| 30 | WP3400924 | Retainer, Push-in (Replaces: 3400924) |
|
Immediately | $ 45.39 | ||||
| 31 | W10831329 | Insulation, Motor (Replaces: W10084568) |
|
Immediately | $ 43.30 |
