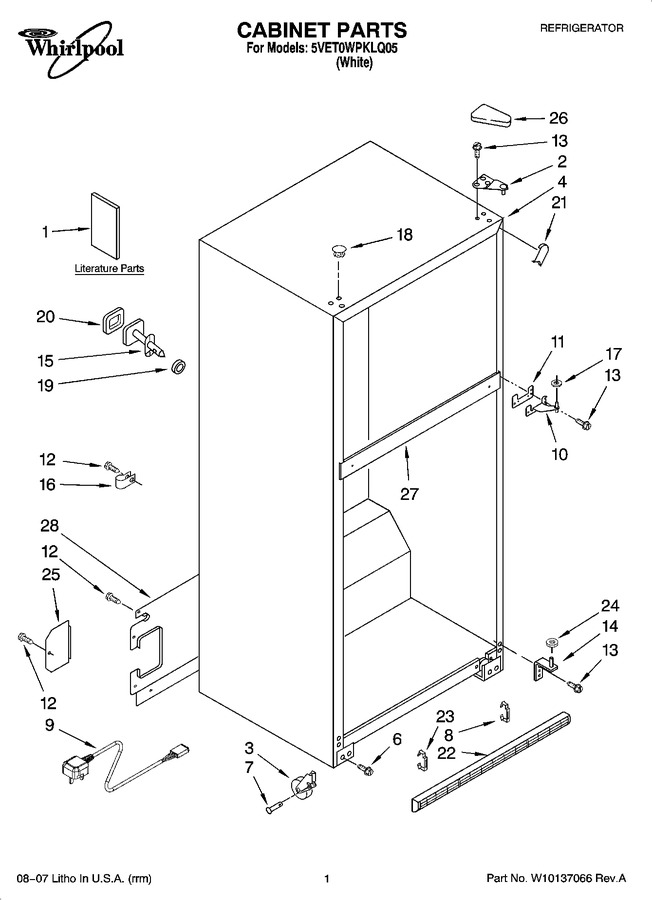

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10129943 | Serivce & Wiring Sheet |
|
- | |||||
| 1 | 2318229 | Use & Care Guide |
|
- | |||||
| 1 | 677967 | Do-it-yourself Manual Ref/fzr |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 6 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.55 | |||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 8 | 2254385 | Clip-grille |
|
$ 88.87 | |||||
| 9 | W10123575 | Cord, Service |
|
- | |||||
| 10 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 11 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 11.43 | |||||
| 12 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 14 | WP2254473 | Hinge Butt Hinge (Replaces: 2254473) |
|
$ 9.28 | |||||
| 16 | 489348 | Clamp |
|
- | |||||
| 17 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 18 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 21 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2201014) |
|
$ 8.21 | |||||
| 22 | WP2254386 | Grille (white) (Replaces: 2254386) |
|
$ 99.26 | |||||
| 23 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 24 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 25 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 26 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 28 | 2254582 | Cover, Unit (Replaces: 2302357) |
|
$ 134.73 |
