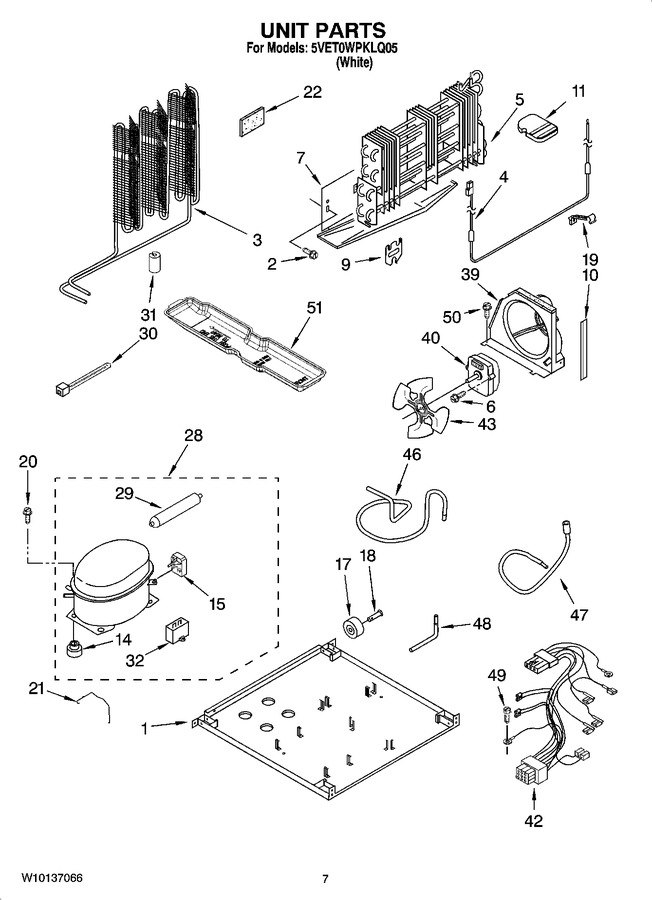

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320188		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2214960		Condenser				$ 141.57
4	W10123579		Heater, Defrost		Appelez-nous	-
5	2254250		Evaporator Assy.				$ 234.07
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.06
7	2254294		Drain Pan		Appelez-nous	-
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2201184		Support Block				$ 6.43
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
15	2321301		Start-device Combination (start Relay And Overload For Production Compressor Only)		Appelez-nous	-
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
21	2302129		Strap		Appelez-nous	-
22	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
28	W10170300		Compressor (includes Items 14,29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: 2321299)		Appelez-nous	-
29	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
31	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.70
32	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 128.97
32	2321245		Capacitor (production)   (Replaces: 2254217)		Appelez-nous	-
39	2302250		Air Baffle				$ 109.95
40	WP2321271		Motor, Condenser   (Replaces: 2321271)				$ 309.96
42	W10123567		Wire Assembly, Unit		Appelez-nous	-
43	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
46	2205533		Tube, Discharge		Appelez-nous	-
47	2214924		Tube, Suction				$ 98.29
48	2154109		Tube, Process				$ 72.63
49	WP489128		Screw   (Replaces: 488500)				$ 10.88
50	3400518		Screw				$ 12.98
51	WP2254574		Evaporator Tray   (Replaces: 2254574)				$ 174.85
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
