View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

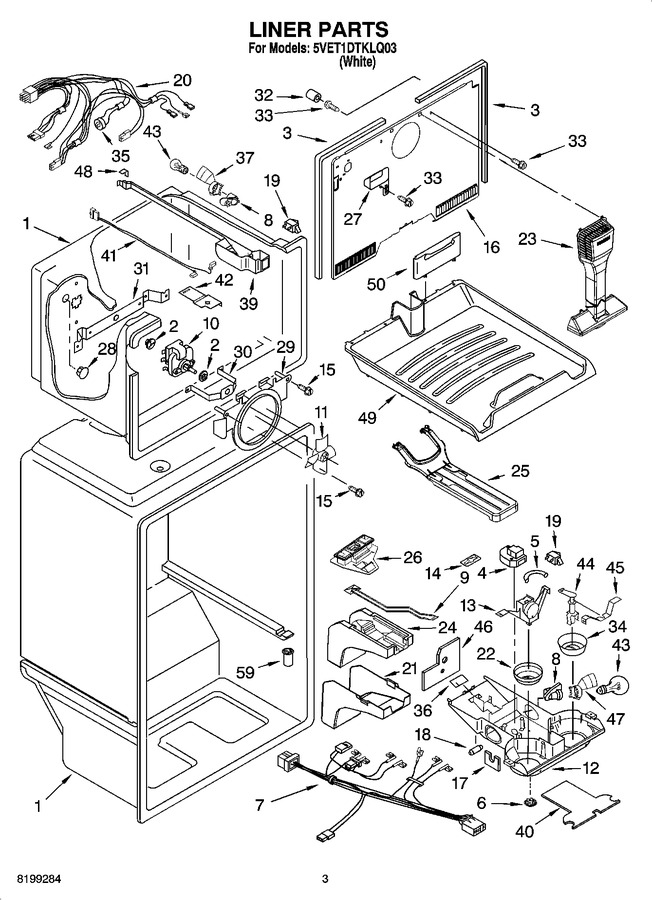

| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254359) |
|
$ 28.12 | |||||
| 4 | WP2321259 | Timer, Defrost (Replaces: 2187236) |
|
$ 163.76 | |||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 7 | 2187880 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | 2302432 | Fan Motor |
|
- | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | 2200820 | Control Box |
|
- | |||||
| 13 | 2210378 | Thermostat Assembly (includes Illus. 5 & 18) |
|
- | |||||
| 14 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 2254257 | Cover-evaporator |
|
- | |||||
| 17 | 2179838 | Foil, Control Box |
|
- | |||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm (2) Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | 2187688 | Wire Assembly, Freezer Compartment (includes Illus. 35) |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 31.91 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 108.24 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 131.03 | ||||
| 25 | 2225473 | Retainer, Freezer Floor |
|
- | |||||
| 26 | 2210390 | Air Separator Assembly |
|
$ 54.27 | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 28 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 29 | 2218696 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2214979 | Bracket, Evap. Fan, Front |
|
$ 56.05 | |||||
| 31 | 2214976 | Bracket, Evap. Fan, Rear |
|
$ 29.44 | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.67 | |||||
| 33 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 35 | WP2182381 | Defrost Bi-metal (Replaces: 2221678) |
|
$ 126.15 | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 10.01 | |||||
| 37 | 2254379 | Shroud, Freezer Light |
|
- | |||||
| 39 | 2182382 | Housing Base |
|
- | |||||
| 40 | 2201082 | Shield |
|
- | |||||
| 41 | 2187601 | Wiring Harness, Freezer Light |
|
- | |||||
| 42 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 43 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 44 | 2179859 | Post, Damper |
|
- | |||||
| 45 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 46 | 2204639 | Shield, Heat |
|
- | |||||
| 47 | WP2175210 | Shroud, Refrigerator (Replaces: 2175210) |
|
$ 86.74 | |||||
| 48 | 2166284 | Gasket, Rear |
|
$ 6.06 | |||||
| 49 | 2225477 | Pullout, Freezer Floor |
|
- | |||||
| 50 | 2198768 | Rear Fence, Freezer Floor |
|
$ 35.55 | |||||
| 59 | WP2210509 | Valve, Release (Replaces: 2171931) |
|
$ 99.15 |
