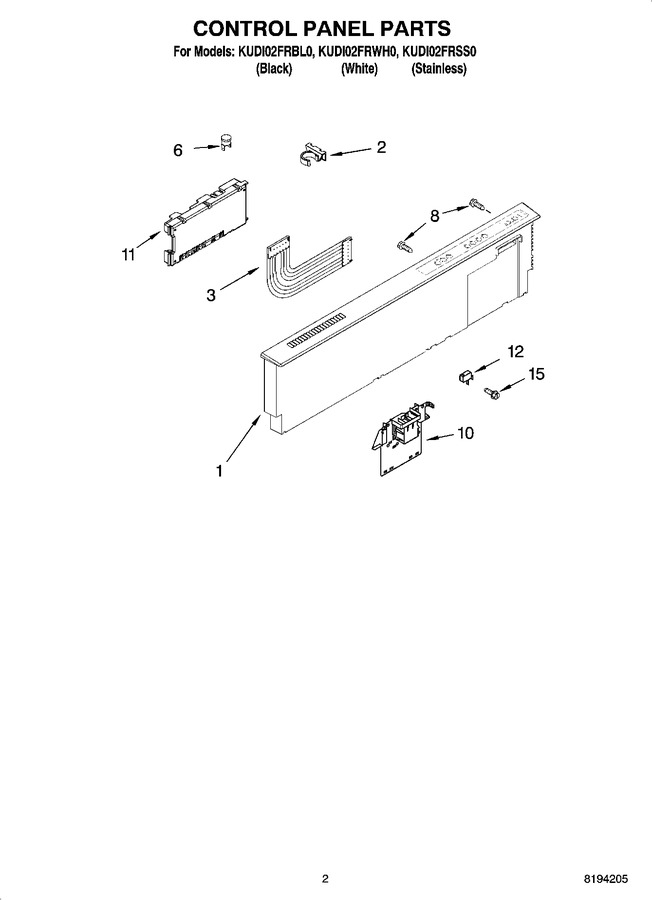

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8572483 | Console Asm. (includes Insert) (white) |
|
- | |||||
| 1 | 8572484 | Console Asm. (includes Insert) (stainless) |
|
- | |||||
| 1 | 8572482 | Console Asm. (includes Insert) (black) |
|
- | |||||
| 2 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 3 | W10850507 | Cable, Ribbon (Replaces: 8564960) |
|
$ 185.52 | |||||
| 6 | W10258275 | Fuse, Thermal Electronic (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 8 | WPW10348409 | Screw (6) (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 10 | 8193830 | Latch Assembly (Replaces: 8270175) |
|
Immediately | $ 137.81 | ||||
| 11 | WPW10084141 | Control, Electronic (Replaces: 8559825) |
|
Immediately | $ 313.68 | ||||
| 12 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 43.30 | ||||
| 15 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.94 |
