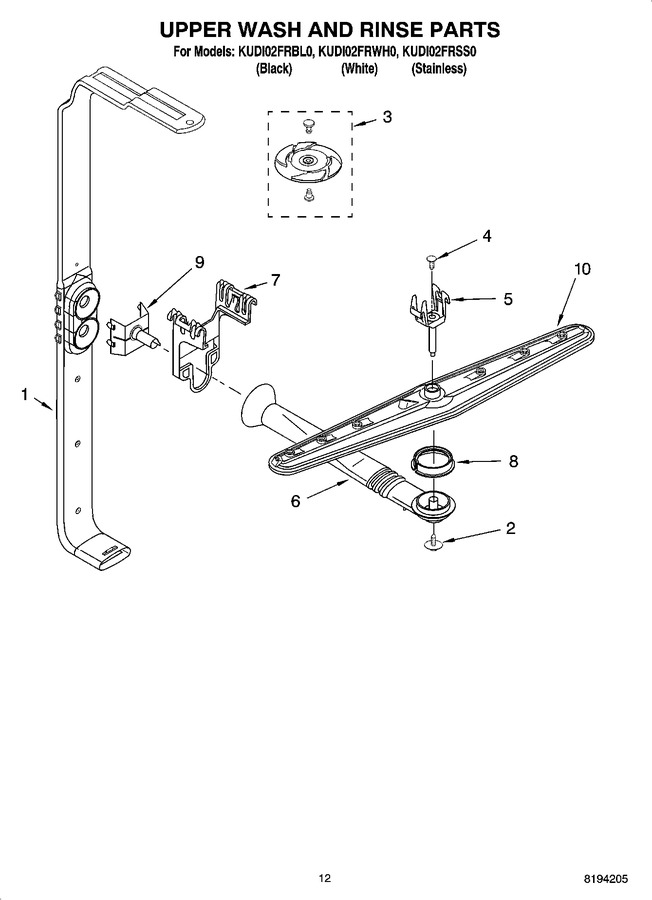

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8558969 | Feed Tube Assembly (also Includes Item 3) |
|
- | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | 3400920 | Fastener, Push-in |
|
$ 7.78 | |||||
| 5 | WP8268321 | Mount (Replaces: 8268354) |
|
$ 105.45 | |||||
| 6 | 8268355 | Manifold |
|
$ 44.66 | |||||
| 7 | WP8268349 | Hanger (Replaces: 8268349) |
|
$ 10.93 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | 8269295 | Nozzle, Feed |
|
$ 41.63 | |||||
| 10 | WP8535086 | Sprayarm (Replaces: 8269023) |
|
$ 109.96 |
