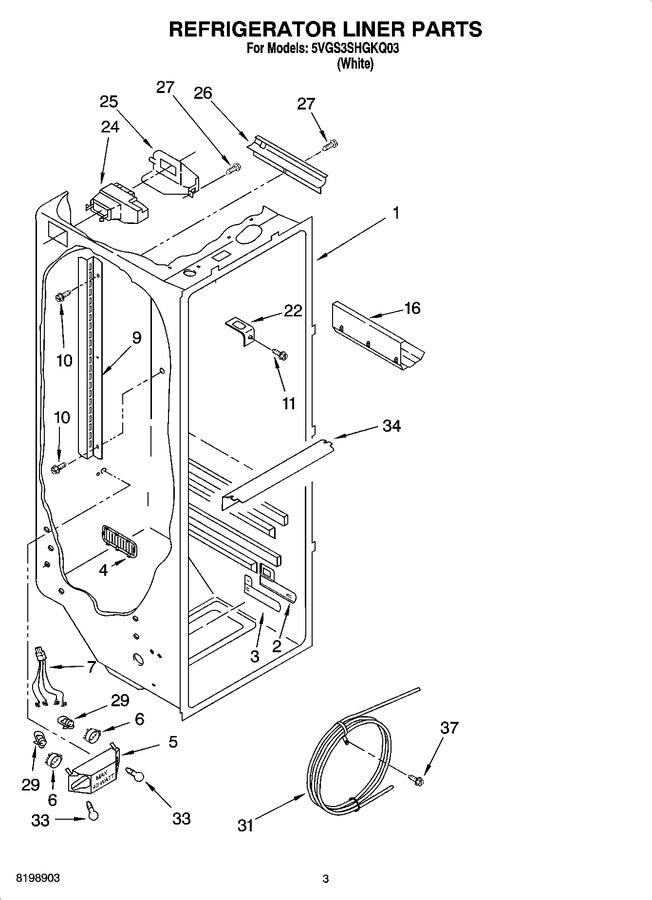

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Lights				$ 62.54
6	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 86.74
7	2311637		Wire Harness, Dual Crisper Lights   (Replaces: 2256037)				$ 147.24
9	2206270		Ladder, Shelf		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
16	W10777924		Rack, Wine & Egg   (Replaces: 2179375)				$ 24.78
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2209752)				$ 361.52
25	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 138.15
26	2150331		Cover, Conduit				$ 25.62
27	W10759522		Screw   (Replaces: 486298)				$ 8.24
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
31	WP2256126		Reservoir   (Replaces: 2256126)				$ 177.29
33	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
34	2209769		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-
