SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts

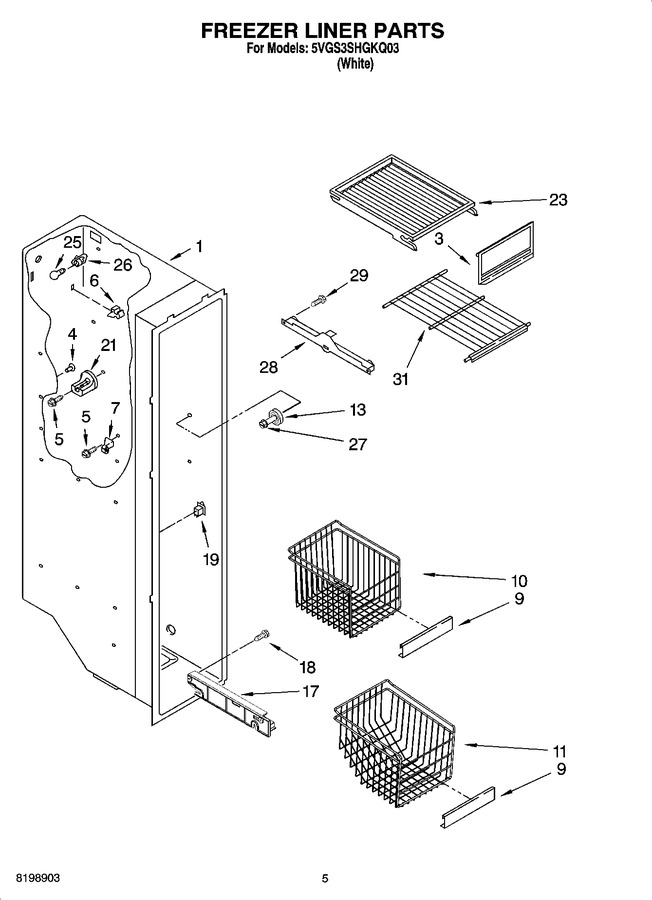

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 66.58
4	2176134		Grommet				$ 5.83
5	W10142289		Screw   (Replaces: 3400893)				$ 9.15
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud		Appelez-nous	-
9	2195904K		Trim, Basket   (Replaces: 2195904)		Appelez-nous	-
10	2301357		Basket, Tall (includes 9)		Appelez-nous	-
11	2301358		Basket, Slope (includes 9)		Appelez-nous	-
13	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
17	2261448		Slide, Basket (left Side (2))				$ 46.07
17	2261449		Slide, Basket (right Side (2))				$ 46.07
18	W10759522		Screw   (Replaces: 486298)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
21	2196207		Stud, Rear				$ 7.61
23	1115380		Slide, Ice Door		Appelez-nous	-
25	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
27	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
31	WP2174249K		Shelf   (Replaces: 2174249)				$ 211.19

    View Diagram in Separate Window       Print Part List
