Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT9744524 Literature Parts (energy Guide) Appelez-nous -
1 LIT9744037 Literature Parts (guide, Use & Care) Appelez-nous -
1 LIT9744480 Literature Parts (tech Sheet) (english) Appelez-nous -
1 LIT9744481 Literature Parts (tech Sheet) (french) Appelez-nous -
1 LIT9743822 Literature Parts (instructions, Installation) Appelez-nous -
2 WP302868 Screw   (Replaces: 302868) In-Stock Immediately $ 8.18

3 9742964 Stiffener, Door Appelez-nous -
4 9743581 Panel Front Appelez-nous -
5 9743560 Access Panel & Clip Assembly (includes Items 11 & 12) Appelez-nous -
6 WP9743986 Spring, Door (2)   (Replaces: 9743986) In-Stock Immediately $ 29.69

7 WP3373234 Bushing, Spring Door (2)   (Replaces: 3373234) Special Order $ 11.01

8 3368942 Toe Panel (includes Item 11) Appelez-nous -
9 9743788 Frame, Door Appelez-nous -
12 3378123 Clip, Grounding Special Order $ 7.79

15 WP488234 Screw (2)   (Replaces: 3400803) Special Order $ 7.08


    View Diagram in Separate Window     Print Icon   Print Part List

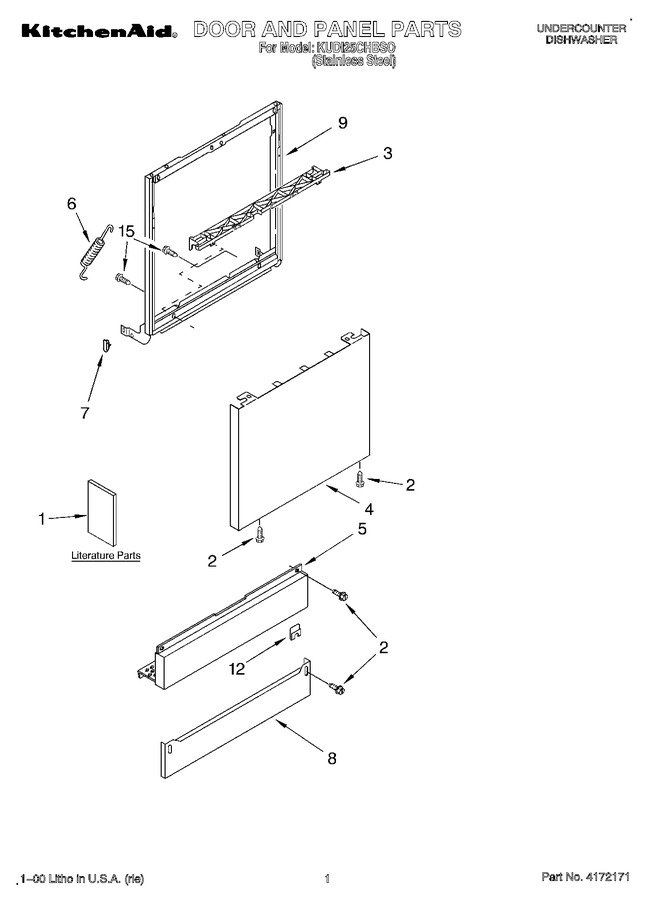

Diagram for KUDI25CHBS0
