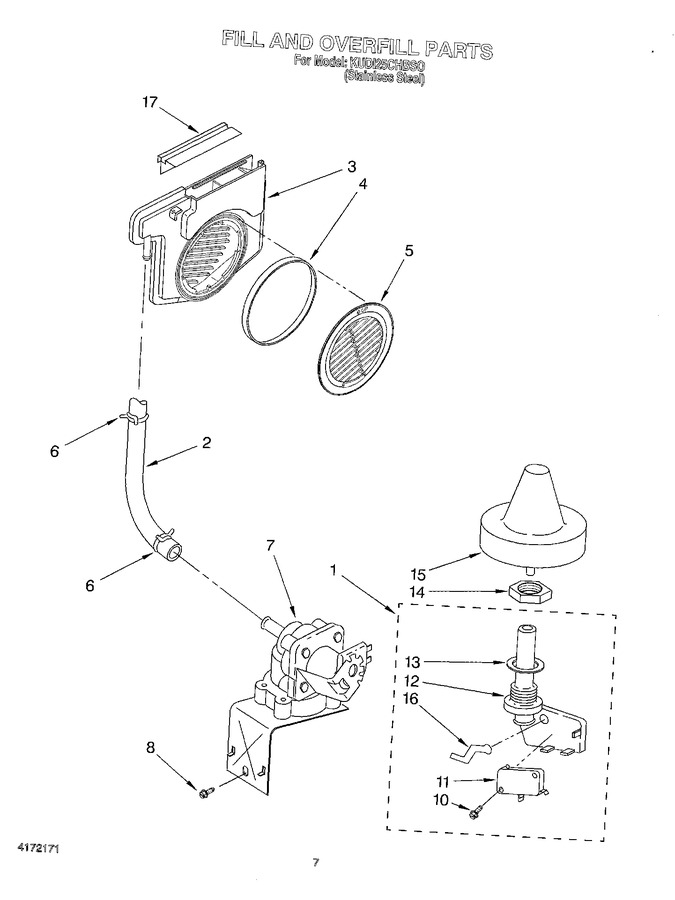

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9741999		Control, Overfill Assembly (also Order Item 14)		Appelez-nous	-
2	9742727		Hose, Inlet				$ 40.94
3	9744519		Water Inlet Assembly (includes Items 4 & 5)		Appelez-nous	-
4	9742787		Gasket				$ 5.83
5	9742786		Bezel, Inlet		Appelez-nous	-
6	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.82
7	W10844024		Fill Valve Assembly   (Replaces: 9744468)			Immediately	$ 96.30
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	3935667		Screw		Appelez-nous	-
11	8282619		Switch, Overfill Control		Appelez-nous	-
12	9741997		Standpipe, Overfill				$ 35.05
13	WP8531743		Gasket, Flat   (Replaces: 4161670)			Immediately	$ 47.27
14	WP9741998		Nut, Standpipe   (Replaces: 9741998)				$ 7.97
15	9743070		Float & Retainer Assembly				$ 57.63
16	4171116		Lever, Overflow Switch		Appelez-nous	-
17	9744521		Flapper		Appelez-nous	-
