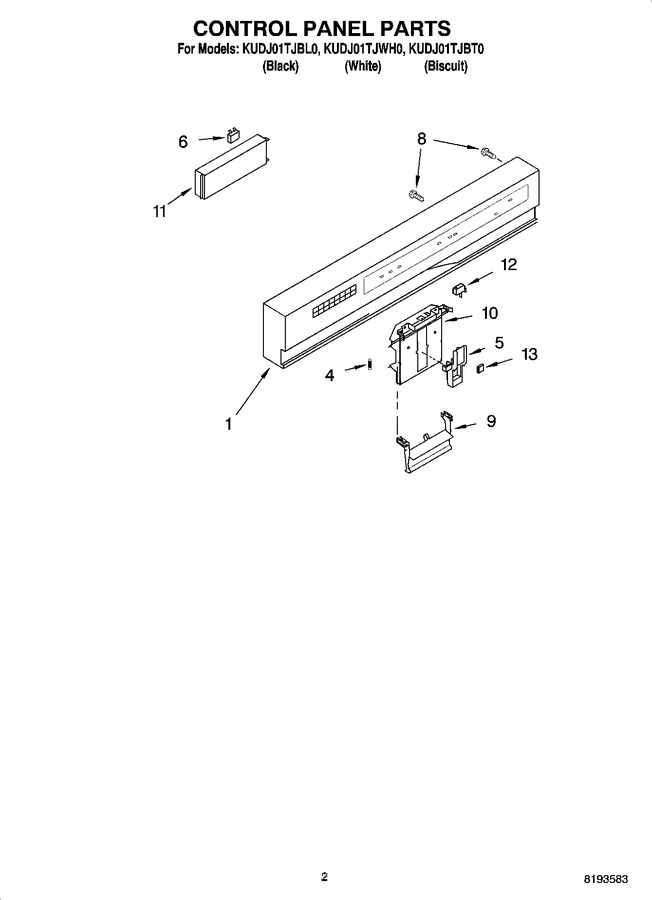

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8268482		Console Asm. Includes Active Overlay & Insert (white)		Appelez-nous	-
1	8268483		Console Asm. Includes Active Overlay & Insert (biscuit)		Appelez-nous	-
1	8268481		Console Asm. Includes Active Overlay & Insert (black)		Appelez-nous	-
4	WP8268540		Spring, Handle   (Replaces: 8268540)			Immediately	$ 8.86
5	WP8524472		Actuator, Latch   (Replaces: 8270116)				$ 105.99
6	8193762		Fuse, Thermal Electronic   (Replaces: 8269213)			Immediately	$ 40.88
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 7.76
9	WP8269117		Handle, Latch (black)   (Replaces: 8269117)			Immediately	$ 102.64
9	WP8269117		Handle, Latch (biscuit)   (Replaces: 8269168)			Immediately	$ 102.64
9	WP8269117		Handle, Latch (white)   (Replaces: 8269167)			Immediately	$ 102.64
10	8193882		Bolt, Latch   (Replaces: 8269116)			Immediately	$ 109.02
11	8527685		Control, Electronic		Appelez-nous	-
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 41.24
13	8270102		Bumper, Latch		Appelez-nous	-
