Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 350956 Paint, Pressurized Spray (12 Oz.) (almond) Special Order $ 51.44

1 8171653 Paint, Touch-up 1/2 Oz. (majestic Yellow) Appelez-nous -
1 4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
1 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

1 285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 57.04

1 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

1 978883 Paint, Bulk (1 Qt.) (almond (uncut)) Appelez-nous -
1 4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
1 4317824 Power Cord Kit (includes Powercord & Misc.hardware) In-Stock Immediately $ 19.77

1 8171477 Floor Mount Kit Special Order $ 52.58

1 N/A Accessories Appelez-nous -
1 8171656 Side Panel Kits (white) Special Order $ 418.17

1 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

1 8171657 Side Panel Kits (black) Special Order $ 625.77

1 8171658 Side Panel Kits (biscuit) Appelez-nous -
1 8171659 Side Panel Kits (stainless Steel) Special Order $ 705.00

1 8171555 Custom Panel Kits (black) Appelez-nous -
1 8171556 Custom Panel Kits (white) Appelez-nous -
1 8171557 Custom Panel Kits (biscuit) Appelez-nous -
1 8171558 Custom Panel Kits (graphite) Appelez-nous -
1 8171574 Custom Panel Kits Color Panel Kits (cobalt Blue) Appelez-nous -
1 8171575 Custom Panel Kits Color Panel Kits (hunter Green) Appelez-nous -
1 8171576 Custom Panel Kits Color Panel Kits (empire Red) Appelez-nous -
1 8171577 Custom Panel Kits Color Panel Kits (majestic Yellow) Appelez-nous -
1 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

1 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 17.91

1 WPW10292170 Miscellanous Parts Bag (includes 2 Screws & 2 Hose Clamps)   (Replaces: 8269297) Special Order $ 92.28

1 4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 26.45

1 8171571 Paint, Touch-up 1/2 Oz. (cobalt Blue) Special Order $ 30.53

1 8171651 Paint, Touch-up 1/2 Oz. (hunter Green) Special Order $ 20.17

1 8171652 Paint, Touch-up 1/2 Oz. (empire Red) Special Order $ 30.22


    View Diagram in Separate Window     Print Icon   Print Part List

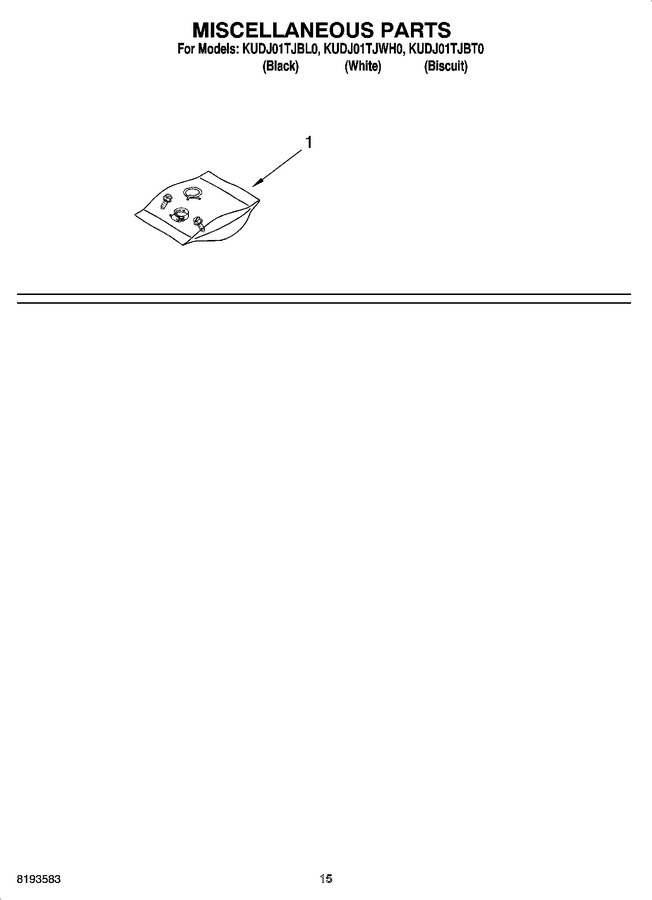

Diagram for KUDJ01TJBT0
