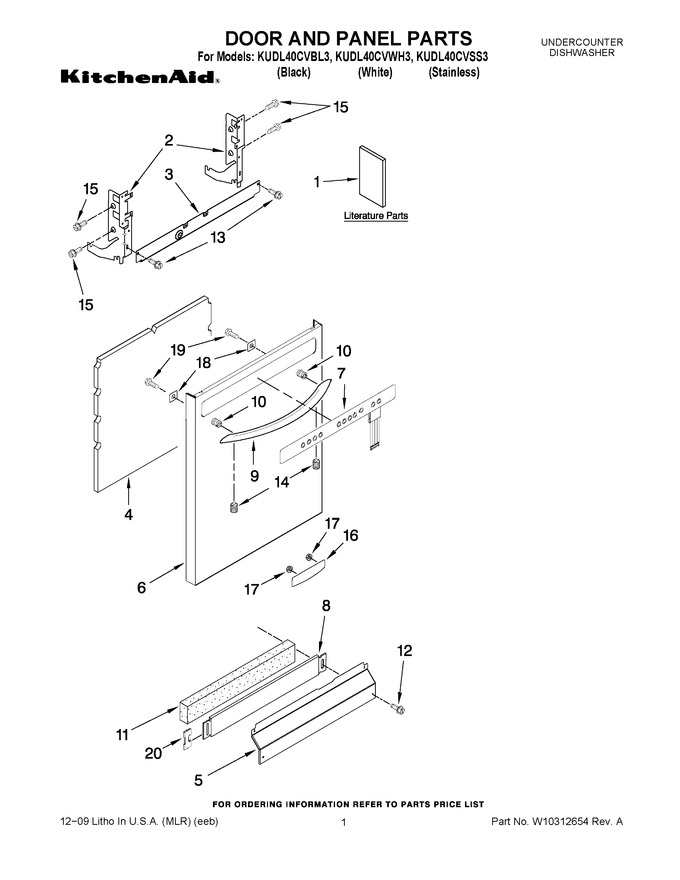

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10056407 | Instructions,installation |
|
- | |||||
| 1 | W10247455 | Energy Guide |
|
- | |||||
| 1 | W10205938 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10205937 | Guide, Use & Care English & French |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8573256) |
|
$ 170.94 | |||||
| 6 | W10137621 | Panel, Full Front (includes Items 4, 10, 16 & 17) (stainless) |
|
$ 218.59 | |||||
| 6 | W10078000 | Panel, Full Front (includes Items 4, 10, 16 & 17) (white) |
|
$ 190.62 | |||||
| 6 | W10077999 | Panel, Full Front (includes Items 4, 10, 16 & 17) (black) |
|
$ 167.31 | |||||
| 7 | W10243196 | Overlay (black) |
|
$ 115.55 | |||||
| 7 | W10243198 | Overlay (stainless) |
|
$ 213.69 | |||||
| 7 | W10243197 | Overlay (white) |
|
- | |||||
| 8 | W10871196 | Toe Panel (includes Items 11 & 20) (black) (Replaces: 8558252) |
|
$ 174.04 | |||||
| 8 | WPW10586591 | Toe Panel (includes Items 11 & 20) (white) (Replaces: 8558253) |
|
$ 309.39 | |||||
| 9 | W10257147 | Handle (includes Items 14) (white) |
|
$ 42.68 | |||||
| 9 | W10257146 | Handle (includes Items 14) (black) |
|
$ 42.06 | |||||
| 9 | W10257145 | Handle (includes Items 14) (stainless) |
|
$ 55.36 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 11 | W10831329 | Insulation Toe Panel (Replaces: 8268581) |
|
Immediately | $ 43.30 | ||||
| 12 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 12 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 8.10 | |||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | W10021870 | Nameplate (white) |
|
$ 128.26 | |||||
| 16 | W10021850 | Nameplate (stainless) |
|
$ 62.01 | |||||
| 16 | W10021860 | Nameplate (black) |
|
$ 109.94 | |||||
| 17 | WP2004333 | Nut (Replaces: 2004333) |
|
$ 11.24 | |||||
| 18 | W10133538 | Plates, Backing |
|
- | |||||
| 19 | W10123421 | Screw |
|
$ 12.83 | |||||
| 20 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 |
