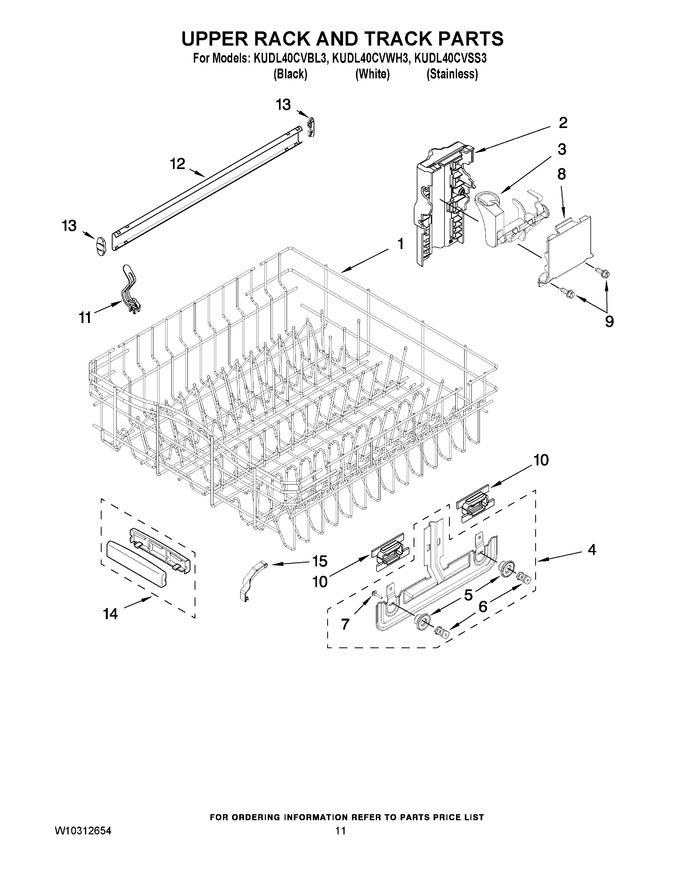

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: 8539233)			Immediately	$ 179.58
2	W10728563		Housing, Adjuster   (Replaces: W10082839)				$ 15.87
3	W10077839		Actuator, Adjuster (left Hand)				$ 38.28
3	W10077838		Actuator, Adjuster (right Hand)				$ 37.92
4	W10728849		Adjuster Assembly   (Replaces: 8268654)				$ 184.96
5	WP3385088		Wheel   (Replaces: 3385088)			Immediately	$ 12.40
6	WP8268703		Axel, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
7	8281156		Screw				$ 5.83
8	W10728561		Cover, Adjuster   (Replaces: W10082840)				$ 20.53
9	WP9741232		Retainer   (Replaces: 9741232)			Immediately	$ 5.07
10	W10728566		Positioner, Arm   (Replaces: W10082834)			Immediately	$ 8.22
11	WPW10077844		Clip, No Flip   (Replaces: W10077844)			Immediately	$ 11.45
12	WP3385089		Track Assembly   (Replaces: 3385089)			Immediately	$ 80.00
13	WP8565925		Stop, Track   (Replaces: W10082860)			Immediately	$ 6.87
14	8539110		Handle, Dishrack		Appelez-nous	-
15	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56

    View Diagram in Separate Window       Print Part List
