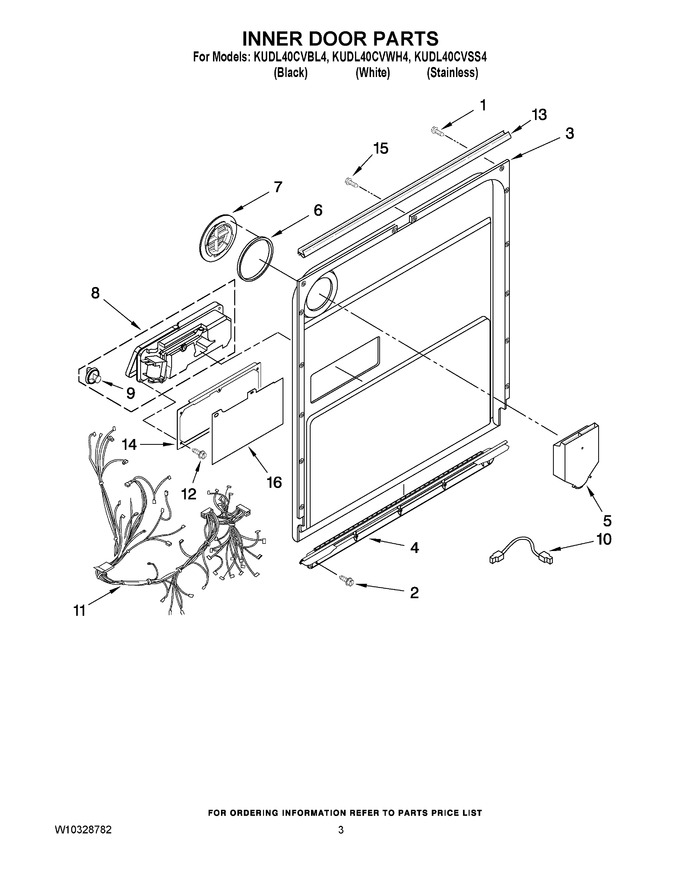

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: 3400815) |
|
Immediately | $ 8.41 | ||||
| 2 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 | |||||
| 3 | W10056249 | Inner Door Mastic Assembly (also Orderitem 6) |
|
$ 173.12 | |||||
| 4 | WPW10077883 | Inlet, Air (Replaces: W10077883) |
|
Immediately | $ 54.13 | ||||
| 5 | WP8572611 | Vent Assembly (also Orderitem 6) (Replaces: 8572611) |
|
$ 210.51 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WPW10077877 | Deflector, Vent (also Orderitem 6) (Replaces: W10077877) |
|
$ 41.93 | |||||
| 8 | WPW10199696 | Dispenser,assembly (Replaces: W10224431) |
|
$ 174.06 | |||||
| 9 | WPW10077881 | Knob, Rinse Aid (Replaces: W10077881) |
|
Immediately | $ 27.85 | ||||
| 10 | 8545608 | Harness, Vent Motor |
|
$ 152.37 | |||||
| 11 | WPW10413099 | Wiring Harness (Replaces: W10224470) |
|
$ 295.65 | |||||
| 12 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 13 | WP8535660 | Seal,console/door (Replaces: 8535660) |
|
$ 186.01 | |||||
| 14 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 37.79 | |||||
| 15 | WP8533965 | Screw (Replaces: 8533965) |
|
$ 16.20 | |||||
| 16 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 113.15 |
