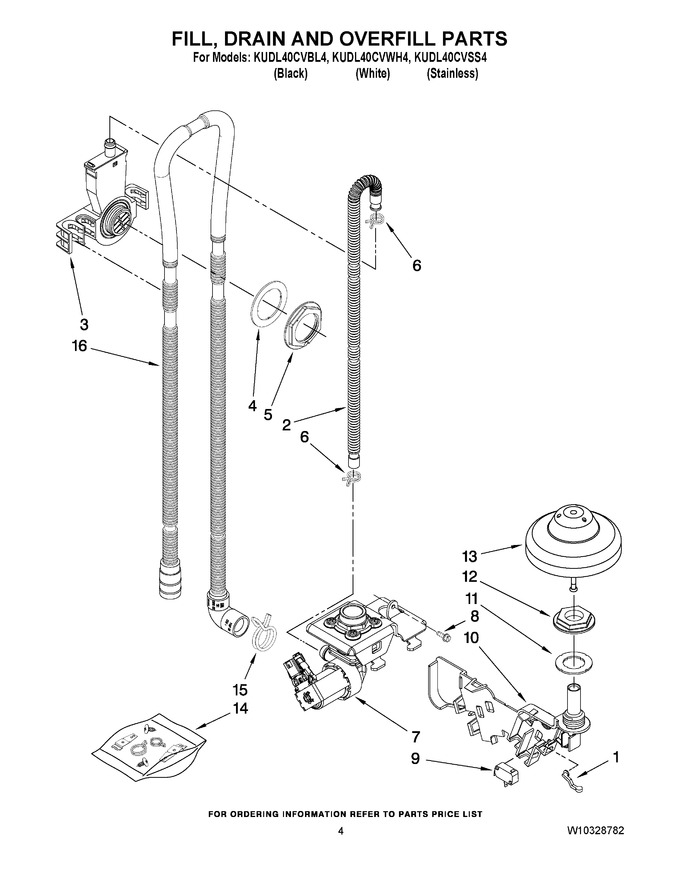

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 57.46 | ||||
| 2 | W10878507 | Hose, Inlet (Replaces: 8531412) |
|
Immediately | $ 77.06 | ||||
| 3 | WPW10195536 | Water, Inlet (also Order Item 4) (Replaces: W10195536) |
|
Immediately | $ 86.31 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 41.07 | ||||
| 5 | WPW10213825 | Nut, Inlet (also Order Item 4) (Replaces: W10213826) |
|
$ 8.39 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | W10648041 | Fill Valve Assembly (Replaces: W10195049) |
|
Immediately | $ 107.33 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10102495 | Switch, Overfill Control (Replaces: W10102495) |
|
$ 78.70 | |||||
| 10 | 8193506 | Standpipe,overfill (includes Item 11) (Replaces: 8545946) |
|
Immediately | $ 126.20 | ||||
| 11 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 47.27 | ||||
| 12 | WP9741998 | Nut, Standpipe (Replaces: 9741998) |
|
$ 7.97 | |||||
| 13 | WPW10077871 | Float & Retainer Assembly (Replaces: W10077871) |
|
Immediately | $ 115.02 | ||||
| 14 | WPW10292170 | Miscellaneous Parts Bag (includes 2 Screws 2 Hose Clamps & 2 Undercounter Brackets) (Replaces: 8269297) |
|
$ 96.92 | |||||
| 15 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 16 | WPW10545278 | Drain Loop With Check Valve (Replaces: W10137608) |
|
Immediately | $ 74.41 |
