SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Deli, Shelves, Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Lights


07 - Ice Maker Parts And Add On Ice Maker Kit


08 - Ice Maker/control Assy


09 - Machine Compartment & Muffler Assy


10 - Ref Door & Door Trim And Handles


11 - Ref/fz Lights, Hinges, And Shelving Assy

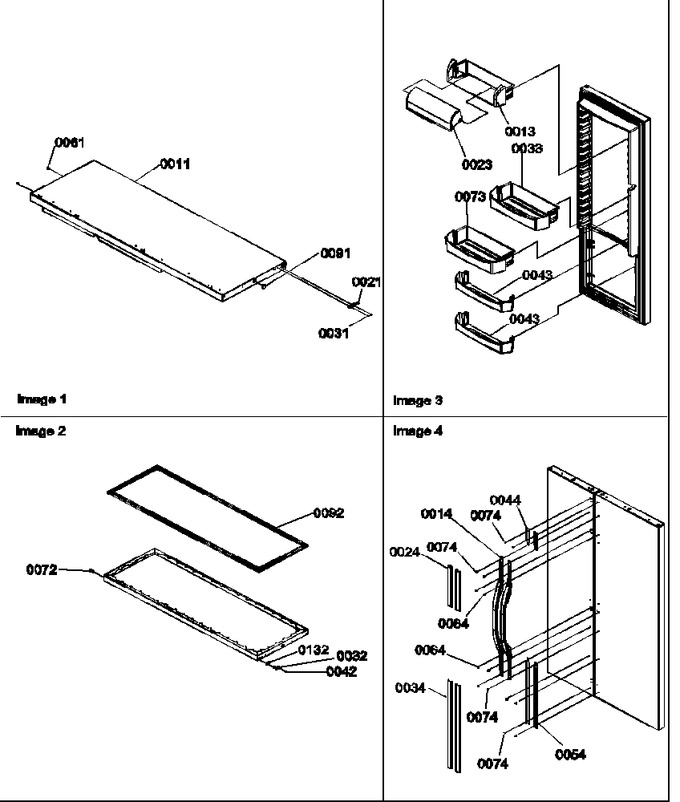

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309701L		Assy, Ref Door (almond)		Appelez-nous	-
13	Y12308602		Use 12308603		Appelez-nous	-
14	12272805		Handle, L Kenmore		Appelez-nous	-
21	C8972410		Stop, Door (bsq)		Appelez-nous	-
23	12308701		Door, Dairy		Appelez-nous	-
24	12273502		Trim-l Sxs Top		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
33	12309508		Bucket, Ref Door		Appelez-nous	-
34	12273505		Trim-l Sxs Bot		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	12311204		Shelf, Ref Door		Appelez-nous	-
44	12273801		Retainer,top Trim		Appelez-nous	-
54	12273802		Retainer,btm Trim		Appelez-nous	-
61	M0311603		Plug, Button (almond)		Appelez-nous	-
64	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
72	10961001		Bushing, Door (wht)		Appelez-nous	-
73	12309507		Bucket, Ref Door		Appelez-nous	-
74	M0216517		Screw		Appelez-nous	-
91	A3080001		Plug, Button (blk)		Appelez-nous	-
92	R9800046		Assy,ref Dr Gasket(white)		Appelez-nous	-
132	10361804		Shim, Dr Bushing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
