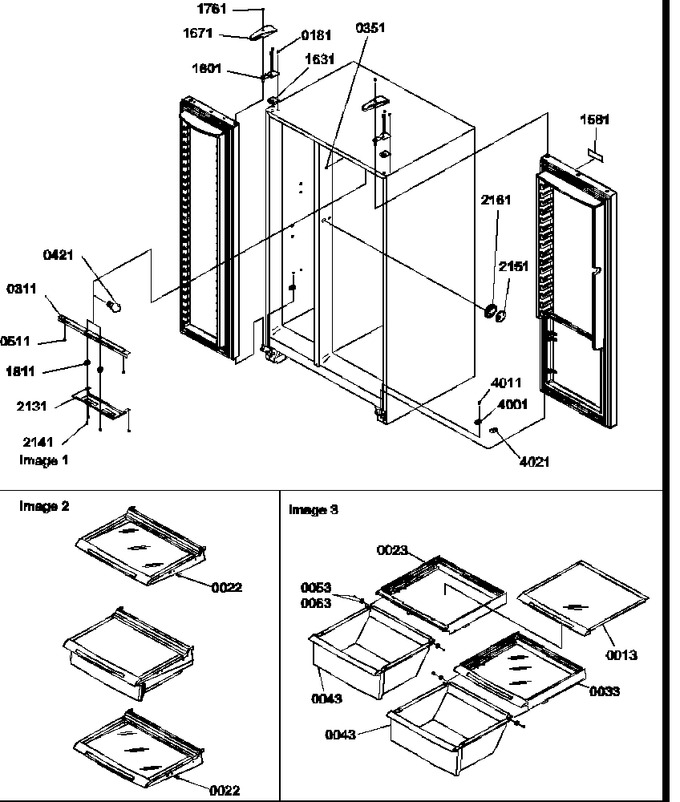

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10783118		Shelf, Crisper		Appelez-nous	-
22	10883323		Assy, Full Glide Shelf		Appelez-nous	-
23	10882801		Assy, Crisper Frame		Appelez-nous	-
33	10882814		Assy, Crisper Frame (lwr)		Appelez-nous	-
43	10783201		Pan,crisper		Appelez-nous	-
53	10481001		Roller, Pan				$ 10.99
63	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
1581	12329501		Nameplate (wht)		Appelez-nous	-
1631	12428101		Shim, Top Hinge		Appelez-nous	-
1671	10504011		Cover, L Hinge		Appelez-nous	-
1761	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.55
1801	12426201		Hinge, Top (e-ct)		Appelez-nous	-
1811	M0270508		Washer		Appelez-nous	-
2131	10493302		Cover, Frz Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2151	10164813		Grille, Control		Appelez-nous	-
2161	10164702		Control-air		Appelez-nous	-
4001	R0181181		Closure, Door (blk)   (Replaces: 12431302)			Immediately	$ 7.55
4011	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.91
4021	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)				$ 7.83
NI	M0311605		Plug, Button (wht)		Appelez-nous	-
