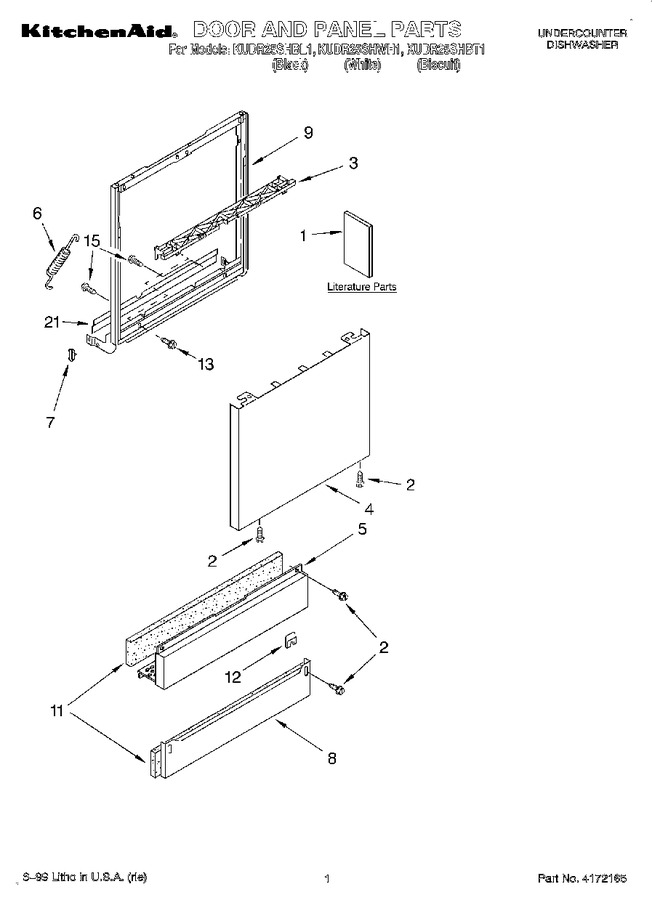

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9744034		Literature Parts (tech Sheet) (french)		Appelez-nous	-
1	LIT9743822		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT9744391		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT9744038		Guide, Use & Care		Appelez-nous	-
1	LIT9744033		Literature Parts (tech Sheet) (english)		Appelez-nous	-
2	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
3	9742964		Stiffener, Door		Appelez-nous	-
4	3379375		Panel Front (black Mdl.)				$ 115.07
4	3379376		Panel Front (white Mdl.)				$ 116.81
4	8054178		Panel Front (biscuit Mdl.)				$ 111.70
5	3379917		Access Panel & Clip Assembly (includes Items 11 & 12) (black Mdl.)		Appelez-nous	-
5	3379918		Access Panel & Clip Assembly (includes Items 11 & 12) (white Mdl.)				$ 21.91
5	8054179		Access Panel & Clip Assembly (includes Items 11 & 12) (biscuit Mdl.)		Appelez-nous	-
6	WP9743986		Spring, Door (2)   (Replaces: 9743986)			Immediately	$ 29.69
7	WP3373234		Bushing, Spring Door (2)   (Replaces: 3373234)				$ 11.01
8	8054181		Toe Panel (includes Item 11) (biscuit Mdl.)		Appelez-nous	-
8	9742861		Toe Panel (includes Item 11) (white Mdl.)		Appelez-nous	-
8	9743790		Toe Panel (includes Item 11) (black Mdl.)		Appelez-nous	-
9	9743788		Frame, Door		Appelez-nous	-
11	9743825		Insulation		Appelez-nous	-
12	3378123		Clip, Grounding				$ 7.79
13	WP308685		Screw (2)   (Replaces: 3367670)			Immediately	$ 7.87
15	WP488234		Screw (2)   (Replaces: 3400803)				$ 7.08
21	8054188		Barrier, Lower Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
