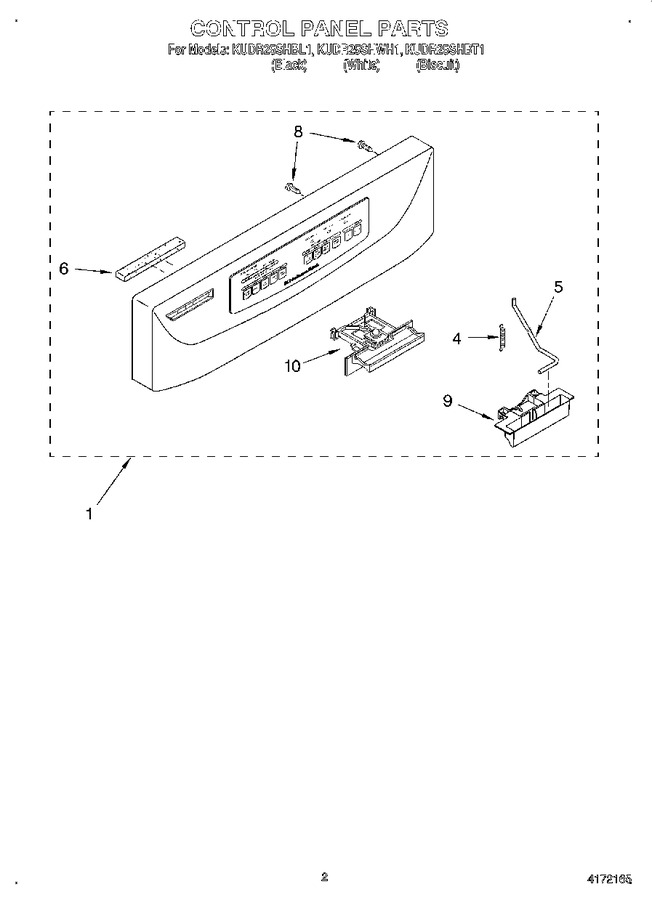

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9744109		Console, Complete (black Mdl.)				$ 208.75
1	9744110		Console, Complete (white Mdl.)		Appelez-nous	-
1	9744310		Console, Complete (biscuit Mdl.)		Appelez-nous	-
4	9743573		Spring, Handle				$ 5.83
5	9743572		Link, Handle				$ 6.67
6	9743412		Sponge, Vent		Appelez-nous	-
8	WPW10348409		Screw (4)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP9743903		Handle, Latch (black Mdl.)   (Replaces: 9743903)				$ 146.61
9	WP9743903		Handle, Latch (biscuit Model)   (Replaces: 9743906)				$ 146.61
9	WP9743903		Handle, Latch (white Mdl.)   (Replaces: 9743904)				$ 146.61
10	3380655		Latch Lever Asm.				$ 54.95
