SELECT A DIAGRAM

Diagram for 01 - Door And Panel Parts

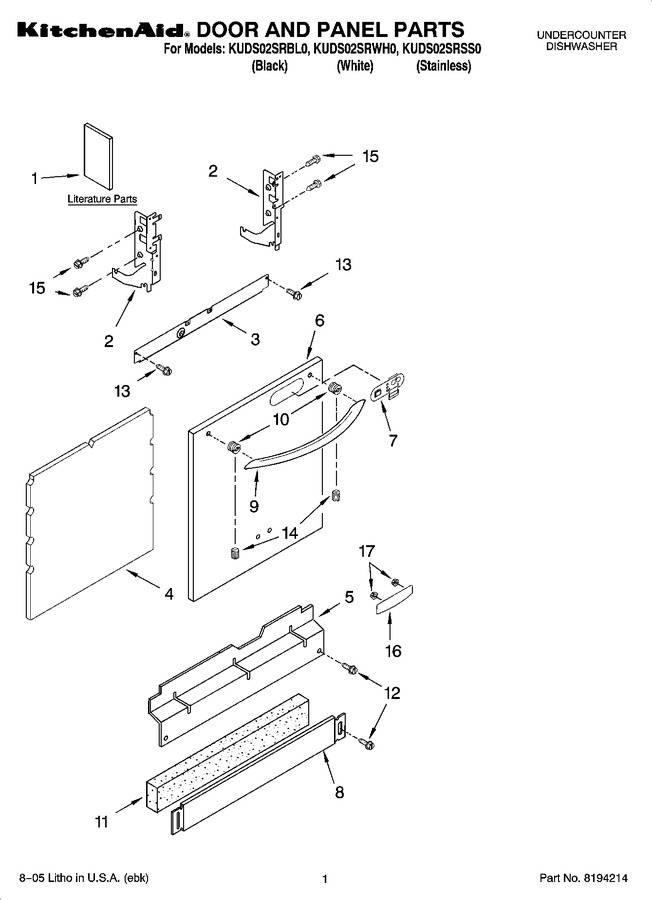

01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm And Strainer Parts
04 - Lower Washarm And Strainer Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Third Level Rack And Track Parts
10 - Third Level Rack And Track Parts

Diagram for 11 - Upper Wash And Rinse Parts
11 - Upper Wash And Rinse Parts

Diagram for 12 - Lower Rack Parts, Optional Parts (not Included)
12 - Lower Rack Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8572289 Guide, Use & Care Appelez-nous -
1 8573157 Instructions, Installation Appelez-nous -
1 8572292 Energy Guide Appelez-nous -
1 8564958 Dvd, Use & Care Appelez-nous -
1 8572288 Guide, Consumer Reference Appelez-nous -
1 8572216 Tech Sheet Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 8564886 Stiffener, Door Appelez-nous -
4 WPW10073520 Insulation, Door   (Replaces: 8542577) Special Order $ 96.23

5 WPW10441007 Access Panel (white)   (Replaces: 8543835) Special Order $ 170.94

5 W11763736 Access Panel (black)   (Replaces: 8543834) In-Stock Immediately $ 42.25

6 8572327 Panel, Full Front (includes Items 16 & 17) (stainless) Appelez-nous -
6 8572325 Panel, Full Front (includes Items 16 & 17) (white) Appelez-nous -
6 8572324 Panel, Full Front (includes Items 16 & 17) (black) Appelez-nous -
7 8572211 Overlay (black) Appelez-nous -
7 8572212 Overlay (white) Appelez-nous -
7 8572214 Overlay (stainless) Appelez-nous -
8 W10871196 Toe Panel (includes Item 11) (black)   (Replaces: 8270026) Special Order $ 174.04

8 WPW10586591 Toe Panel (includes Item 11) (white)   (Replaces: 8270027) Special Order $ 309.39

9 8564946 Handle (black) Appelez-nous -
9 8564947 Handle (white) Special Order $ 62.78

9 W10083931A Handle (stainless)   (Replaces: 8564945) Special Order $ 107.25

10 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 19.33

11 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

12 WP302868 Screw   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 WP8534008 Screw   (Replaces: 8534008) Special Order $ 9.37

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 8.26

16 2209118W Nameplate (white) Appelez-nous -
16 2005292 Nameplate (black) Special Order $ 52.20

17 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24
