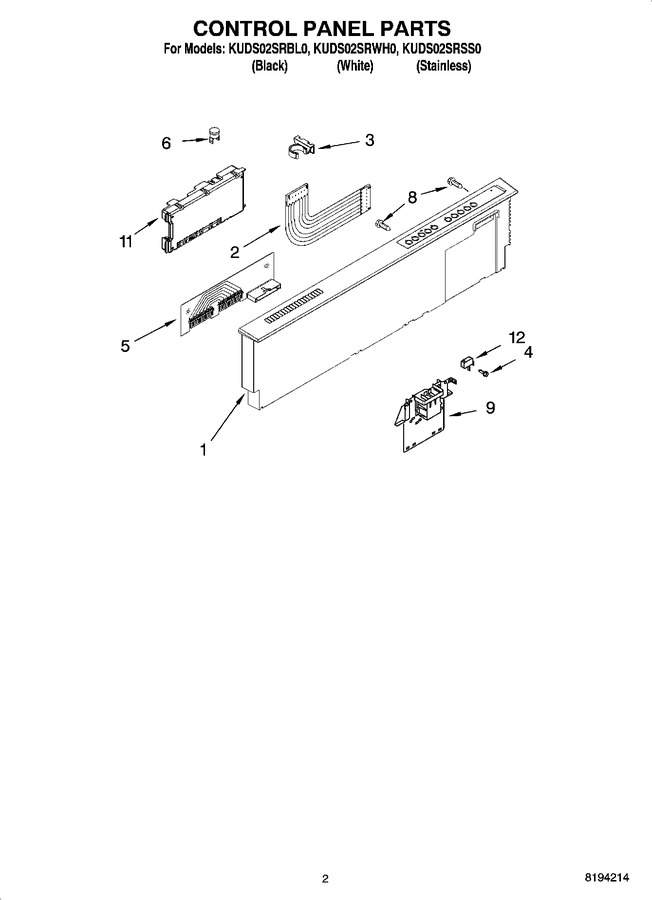

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8572366 | Console Assembly (includes Insert) (white) |
|
- | |||||
| 1 | 8572473 | Console Assembly (includes Insert) (stainless) |
|
- | |||||
| 1 | 8572365 | Console Assembly (includes Insert) (black) |
|
- | |||||
| 2 | 8531877 | Cable, Ribbon |
|
$ 66.48 | |||||
| 3 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 4 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.56 | ||||
| 5 | WP8531873 | Board, Interconnect (Replaces: 8531873) |
|
Immediately | $ 181.02 | ||||
| 6 | W10258275 | Fuse, Thermal Electronic (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 8 | WPW10348409 | Screw (6) (Replaces: 3369051) |
|
Immediately | $ 7.76 | ||||
| 9 | 8193830 | Latch Assembly (Replaces: 8270175) |
|
Immediately | $ 137.81 | ||||
| 11 | WPW10084141 | Control, Electronic (Replaces: 8559824) |
|
Immediately | $ 298.74 | ||||
| 12 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 41.24 |
