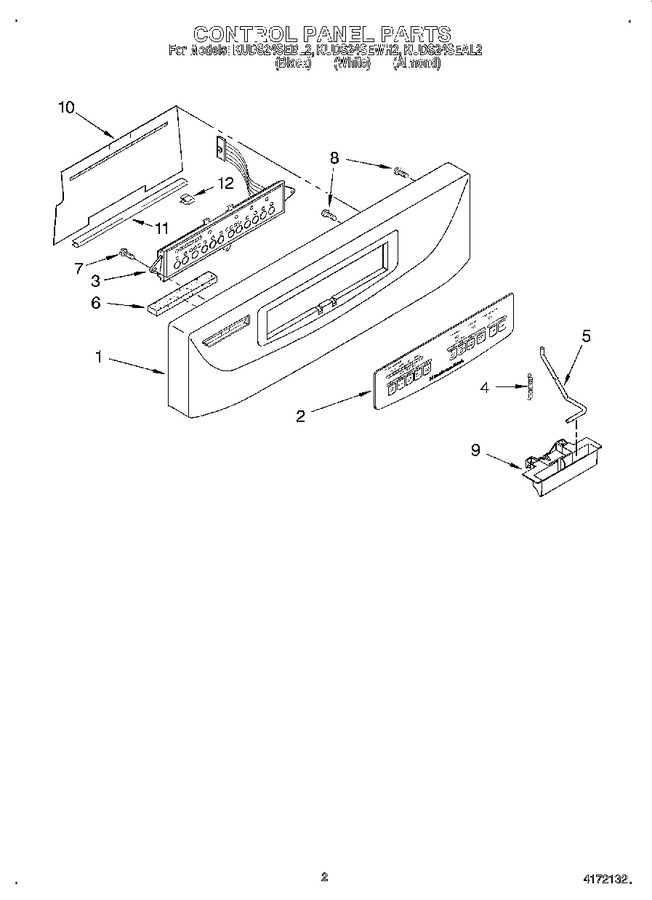

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743577		Console (also Order Item 2) (black Model)		Appelez-nous	-
1	9743578		Console (also Order Item 2) (white Model)		Appelez-nous	-
1	9743579		Console (also Order Item 2) (almond Model)		Appelez-nous	-
2	9743376		Insert (white Model)				$ 84.01
2	9743377		Insert (almond Model)		Appelez-nous	-
2	9743375		Insert (black Model)				$ 111.46
3	WP9743241		Switch, Panel (user Interface)   (Replaces: 9743241)				$ 284.30
4	9743573		Spring, Handle				$ 5.83
5	9743572		Link, Handle				$ 6.67
6	9743412		Sponge, Vent		Appelez-nous	-
7	WP304231		Screw (3)   (Replaces: 304231)			Immediately	$ 8.14
8	WPW10348409		Screw (4)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP9743903		Handle, Latch (black Model)   (Replaces: 9743188)				$ 146.61
9	WP9743903		Handle, Latch (white Model)   (Replaces: 9743189)				$ 146.61
9	WP9743903		Handle, Latch (almond Model)   (Replaces: 9743190)				$ 146.61
10	9743440		Barrier, Display		Appelez-nous	-
11	9743444		Retainer, Barrier		Appelez-nous	-
12	9743442		Clip, Retainer		Appelez-nous	-
